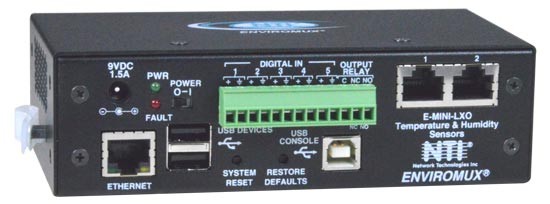

Mini Environment Monitoring System

NTI Part #: E-MINI-LXO-Group
E-MINI-LXO
E-MINI-LXO

Additional Images/Videos

NTI Part #: E-MINI-LXO-Group
The E-MINI-LXO features 2 temperature/humidity ports, 5 digital inputs, and 1 output relay for control of an external device. Linux inside.
Also known as: Remote Server Environment Monitoring System, monitor network closet, data center thermometer, temperature humidity IP sensor reading, computer rooms temperature alert, tcp/ip temp probe.
Supported Features
  • USB ports for flash drive, USB 3G modem & USB serial control
  • 2 temp/humidity ports, 5 digital inputs, 1 output relay
  • User-programmable IP camera snapshots
  • Linux inside

Talk to a live agent

  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Mini Environment Monitoring System
  • CE Compliant Mini Environment Monitoring System
Scroll Down to Get Quote

Overview

The ENVIROMUX® Mini Environment Monitoring System (EMS) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via USB 3G modem).

  • Monitor and manage server room environmental conditions over IP.
  • Sensors supported:
    • 2 temperature/humidity sensors.
    • 5 digital inputs sensitive to contact closure.
    • Sensors are hot plugable.
  • One output relay for control of external devices.
    • Relay activates upon alarm or via the user interface.
  • Supports NTI's IP network video cameras for live view of any facility.
    • One integrated view - see different Web cameras side-by-side with physical and environmental parameters.
    • Any programmed event can trigger a snapshot from an IP camera.
  • Monitor (ping) up to 16 IP network devices.
    • Alerts are sent if devices are not responding.
  • Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface.
  • Available with optional internal battery backup.
    • Alerts are sent when there is a power outage and when power returns.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
    • Configure up to 50 events.
    • Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
  • Alerts are posted in message log, which is accessible through Web user interface.
  • Automatically configures network settings received from a connected DHCP server.
    • If a DHCP server is not found, the default static IP address will be used.
  • Integrates with various Open Source monitoring packages – Nagios, MRTG and others.
    • The unit can be polled via SNMP.
  • Linux inside.
  • Supports network security scanners.
  • Backup and restore system configurations.
  • Flexible Zero-RU mounting.
    • Mounting tabs included.
    • Optional 1RU rackmount kit available; the ENVIROMUX unit can be mounted with the front or rear facing out.
    • Optional DIN mounting available.
  • Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
  • Optional industrial mini environment monitoring system for high temperature environments. This industrial system has the ability to operate and monitor in harsh environments at high temperatures up to 167°F (75°C).
  • Use the E-MINI-LXO with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
    • Configure, monitor, and receive alerts without the use of a wired network connection.

Specifications

Temperature/Humidity Inputs
  • Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors.
    • Two levels of user-defined alerts – non-critical and critical.
Dry Contact Closures
  • Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor.
  • Potential-free.
  • Output voltage: +5 V DC
  • Current limited to 10 mA
  • Maximum resistance to close contact: 300K Ohm
Output Relay
  • One screw terminal pair.
  • Potential-free relay switch contacts.
  • Maximum switching load: 1A at 125VAC or 30VDC.
USB Port
  • Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive.
  • One female USB Type B connector for connecting a PC for serial terminal access.
Ethernet Port
  • One female RJ45 connecto.
  • 10/100 Base-T Ethernet interface.
Optional Back-Up Battery
  • Rechargeable sealed lithium battery.
  • Provides back-up for two hours.
MTBF
  • E-MINI-LXO: 274,783 hours.
Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
  • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB serial interface.
    • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
    • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • An IP address can be assigned to the E-MINI-LXO automatically by a DHCP server.
  • Generates SNMP traps, email alerts, and syslog messages.
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 17 addresses.
Dimensions
  • WxDxH: 5.82x3x1.75 in (148x76x44 mm)
  • Optional 1RU rackmount kit available
    (E-RK1-2D).
    • The ENVIROMUX system can be mounted so that the sensor connectors are facing the front or back of the rack.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
    • Includes 9V, 1.5A adapter.
    • Will work with a 12V, 2A adapter.
    • Overvoltage and overcurrent protection in the unit and power supply.
  • Power consumption: 10 W
  • Use the PWR-48V-12V1-6A DC-DC power converter to install the E-MINI-LXO in a 48V or 24V Telecom environment.
Environmental
  • Operating temperature:
    • E-MINI-LXO: 32 to 104°F (0 to 40°C).
    • E-MINI-LXO-IND: 32 to 167°F (0 to 75°C).
  • Storage temperature: -20 to 176°F (-20 to 80°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • EN51055, EN50121-3-2
Warranty
  • Two years

Control Methods

Web Interface (view product demo)
  • Configuration can be done over the Internet/LAN via Web page.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Configure sensor's thresholds, alarm methods, formats of alerts, and system data log.
    • Customize email subject headers for sensor alerts.
  • View/edit sensors' current values, thresholds and alert statuses.
    • All sensors connected to the E-MINI-LXO can be viewed on one summary page.
    • User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
  • View/edit entries stored in the system logs.
    • Event log records system events such as alerts, user login/logout, failed email messages, etc.
    • Data log records samples of sensor readings. User specified sampling time period.
    • Both the event log and the data log store up to 1,000 entries.
    • The log can be downloaded as a tab-delimited plain text file.
  • Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
  • Upload custom x509 certificates.
  • Up to 16 users can access the web page at one time.
  • Configure up to 50 sensor conditions (events)
  • Configure up to 20 Smart Alerts to use different event combinations to send alert messages.
Front Panel Interface
  • LEDs indicate the following:
    • "Fault" (red) lights up if a sensor goes out of range of a configurable threshold.
    • "Power" (green) lights up when the device is powered/all clear.
  • Restore Defaults button – use to manually restore the E-MINI-LXO back to factory settings.
  • System Reset button – use to manually reboot/restart the firmware for the E-MINI-LXO.
Network Operation
  • Automatically configures network settings received from a connected DHCP server.
    • If a DHCP server is not found, the default static IP address will be used.
USB Serial Interface / Telnet / SSH
  • Configure, control and monitor over the text-based menu system accessible via USB console port, Telnet, and SSH.
    • Logs can be reviewed via the text menu.
  • Access is controlled via username/password.
    • System stores encrypted login information.
  • Two user levels: user and administrator.
  • Telnet and SSH can be enabled or disabled.
    • Network Security Enhancement: Disabling Telnet can prevent unsecure text menu access to the E-MINI-LXO.
Mobile Summary Page (view product demo)
  • View summary page on mobile devices – smartphones, tablets, etc.
  • Summary page lists all connected sensors' current values and alert statuses.
Open Source Monitoring Integration

Application Drawings

  • How to Monitor Environmental Conditions Using the E-MINI-LXO

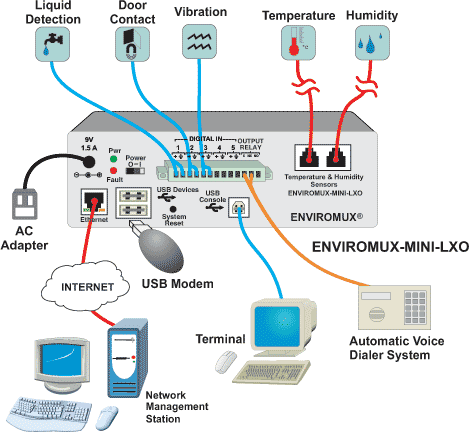

    How to Monitor Environmental Conditions Using the E-MINI-LXO
    Configuration and cable illustration of the mini environment system monitoring room conditions including temperature, humidity, liquid and door contacts.

Application Notes

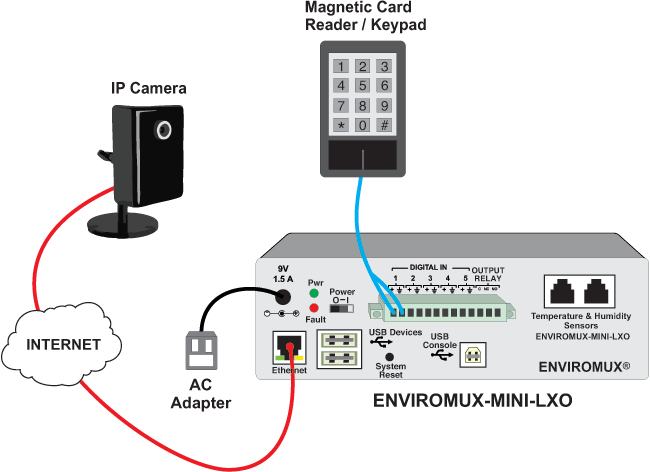

  • How to Set Up Email Alerts With IP Camera Snapshots When Triggered by Magnetic Card Reader or Keypad
    Loading image...
    Card reader or keypad must have output relays that will activate on desired events, such as failed entry, successful entry, forced entry, etc. Connect output relays to the ENVIROMUX-MINI-LXO digital inputs. Access the web interface to configure IP camera and alert settings. Under Monitoring > IP Cameras, select "Configure IP Cameras" to add desired IP camera address. Select Digital Input > Digital Input Configuration and choose the corresponding output relay connections. Set-up appropriate alert settings and ensure that "Enable E-mail Alerts" and "Attach IP camera capture to email" are checked and the desired IP camera is selected; for example, if digital input #1 is normally-open, an email alert and IP camera snapshot should trigger if it is closed. Check that all user and email alert settings are correct.
