XTENDEX® ST-C6DVI-IR-300 (Remote and Local Unit)
XTENDEX® ST-C6DVI-IR-300 (Remote and Local Unit)

DVI Extender with IR and Optional Stereo Audio via One CAT5/6/7

NTI Part #: ST-C6DVI-IR-300-Group
The XTENDEX® DVI Extender transmits digital DVI video and IR signal up to 300 feet away from a DVI source over a single CAT5/6/7 cable. Each video extender consists of a local unit that connects to a single link digital DVI source and IR emitter, and a remote unit that connects to a DVI display and IR receiver.
Also known as: DVI extender single CAT5, Media center extender, Set-top box extender, cat6 DVI-D monitor extender, remote digital DVI monitor, DVI IR transmitter/receiver, high definition 1080p extender, extend HDTV video, balun, dvi over cat6 protocol.
Product Highlights
  • Optional Support for Stereo Audio
  • Extend to 300 ft (91 m) via One CAT5/6/7 Cable
  • Only One Power Supply Required

Talk to a live agent

  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant DVI Extender with IR and Optional Stereo Audio via One CAT5/6/7
  • DVI Extender with IR and Optional Stereo Audio via One CAT5/6/7Digital Signage Product
  • CE Compliant DVI Extender with IR and Optional Stereo Audio via One CAT5/6/7
Scroll Down to Get Quote

Overview

The XTENDEX® DVI Extender transmits digital DVI video and IR signal up to 300 feet away from a DVI source over a single CAT5/6/7 cable. Each video extender consists of a local unit that connects to a single link digital DVI source and IR emitter, and a remote unit that connects to a DVI display and IR receiver.

  • Transmits all signals over one CAT5/6/7 cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
    • Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
  • Available with optional stereo audio.
  • Full IR control of DVI source from remote HDTV using existing source remote control.
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • High quality, rugged steel construction with durable powder coat finish.
  • Only one power supply is necessary to power both the local and remote units.

Specifications

Specifications

Local Unit
  • Compatible with a computer or HDTV video source with DVI output.
  • One female DVI-I connector.
    • Signal type: single link digital DVI.
  • IR extension support: one female 3.5 mm port for IR emitter.
  • One female RJ45 port for sending/receiving high definition video, IR and DDC signals.
  • Latency: 40 ns
  • Jitter: 1.230 ns
Remote Unit
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • One female DVI-I connector.
    • Signal type: single link digital DVI.
  • IR extension support: one female 3.5 mm port for IR receiver.
  • One female RJ45 port for sending/receiving high definition video, IR and DDC signals.
  • Auto equalization for different lengths of CAT5/6/7 cable.
Dimensions
  • WxDxH: 3.09x3.49x1.08 in (78x89x27 mm)
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
  • Power consumption: 10 W.
  • Heat dissipation: 34 Btu/h.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Cables
  • Use DVI-IS-xx-MM cable to connect a DVI source or display.
  • Use DVI-HDMI-xx-MM cable to connect an HDMI source or display.
  • Use DPMM-DVIDF-CBL adapter cable to connect a Mini DisplayPort source or display.
  • Use CAT5/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • IR transmitter/receiver included.
Warranty
  • Two years.

Distances and Resolutions for CAT5e/CAT6 and CAT7 Cables
Cable Distance Maximum Standard Resolution
CAT5e Solid 100 feet (30 meters) 1080p/24Hz
1920x1200/60Hz
1080i/60Hz/12-bit
720p/60Hz/12-bit
CAT5e Stranded UTP 100 feet (30 meters) 1280x1024/60Hz
720p/60Hz/12-bit
CAT6 Solid UTP 50 feet (15 meters) 1080p/60Hz/12-bit
1920x1200/60Hz
75 feet (23 meters) 1080p/60Hz/10-bit
1080i/60Hz/12-bit
1920x1200/60Hz
150 feet (46 meters) 1080p/60Hz/8-bit
1600x1200/60Hz
1080i/60Hz/12-bit
200 feet (61 meters) 1080p/24Hz
1360x768/60Hz
1080i/60Hz/12-bit
720p/60Hz/12-bit
250 feet (76 meters) 1080p/24Hz
1360x768/60Hz
1080i/60Hz/8-bit
480p/60Hz/12-bit
300 feet (91 meters) 480p/60Hz/12-bit
800x600/75Hz/8-bit
CAT6a Solid UTP 50 feet (15 meters) 1080p/60Hz/12-bit
1920x1200/60Hz/8-bit
75 feet (23 meters) 1080p/60Hz/10-bit
1920x1200/60Hz
1080i/60Hz/12-bit
100 feet (30 meters) 1080p/60Hz/10-bit
1920x1200/60Hz
1080i/60Hz/12-bit
200 feet (61 meters) 1080i/60Hz/12-bit
1360x768/60Hz
720p/60Hz/12-bit
250 feet (76 meters) 1080i/60Hz/8-bit
1024x768/60Hz
480p/60Hz/12-bit
300 feet (91 meters) 480p/60Hz/10-bit
1024x768/60Hz
Flat CAT7 Stranded STP 50 feet (15 meters) 1080p/60Hz/36-bit
1920x1200/60Hz
100 feet (30 meters) 1080i/60Hz/36-bit
1920x1200/60Hz
CAT7 Solid STP 200 feet (61 meters) 1080p/60Hz/8-bit
1024x768/60Hz
1080i/60Hz/12-bit
279 feet (85 meters) 1080p/24Hz
1024x768/60Hz
1080i/60Hz/8-bit
480p/60Hz/12-bit

Application Drawings

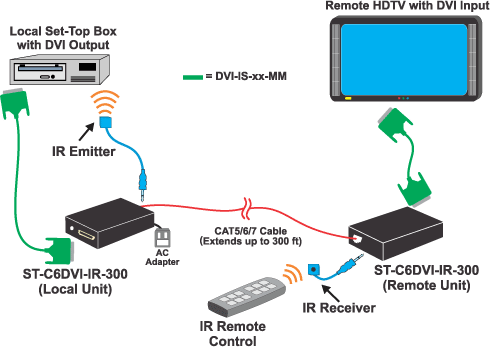

  • DVI Extender with IR via One CAT5/6/7
    DVI Extender with IR via One CAT5/6/7
    How to connect a DVI source such as a set-top box to a HDTV display up to 300 feet away.
