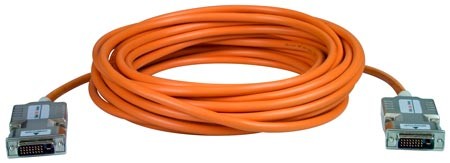

DVI Active Optical Cable

NTI Part #: DVI-FO-xx-MM-Group

XTENDEX® DVI-FO-xx-MM

Additional Images/Videos

NTI Part #: DVI-FO-xx-MM-Group

The XTENDEX® DVI Active Optical Cable locates a DVI display up to 100 meters (328 feet) from a video source. Using optical fiber, the DVI-FO-xx-MM provides high reliability DVI signal transmission with zero signal loss in high noise environments.

Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
No power supply required
TAA compliant

Talk to a live agent

Designed and Manufactured in the U.S.A.

Scroll Down to Get Quote

Overview

High speed and long distance transmission by optical system up to 100 meters (328 feet).

Hybrid cable containing both fiber optic and copper cores.

RGB and Clock signals are transmitted by optical fiber.
DDC signal is transmitted by copper line.

Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
No loss of signal – delivering crystal clear digital images instantly.
HDCP compliant.
No external power required.
Optical fibers immune to signal noise.
Low RFI/EMI for sensitive applications.
Supports Plug-n-Play specification.
EDID pass-through for the support of any DVI display device.
Use with HDMIM-DVIDF HDMI Male to DVI-D Female Adapter to connect to an HDMI source or display.
Ideal solution for many applications, including:

Digital Signage
Medical Imaging Equipment
Airplane On-board Video System
TV Broadcast Station
Conference Room Video Equipment

Specifications

Compatible with computers and video sources (satellite receivers, DVD players, etc) with female DVI-D dual link output connectors.
Connectors: Male DVI-D dual link connectors.
Single link digital DVI signal.
- Signal bandwidth: 1.65Gbps (Single Link).
Resolution: supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
Compatible with DDWG DVI standard.
Optical source: 850 nm VCSEL.
O/E Converter: PIN photo diode.
Fiber: H-PCF graded index multimode fiber.
Cable thickness: 7.2 mm (0.28 in)
Bend radius: up to 48mm (1.89 in)
Available lengths: 33/49/65/82/98 feet (10/15/20/25/30 meters)
- Contact an NTI product consultant for additional lengths up to 328 feet (100 meters).

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 158°F (-20 to 70°C).

Regulatory Approvals

CE, FCC, RoHS
TAA compliant

Warranty

Two years

Downloads

Data Sheet:

DVI Active Optical Cable 196 KB

User Manual:

Specificaions: Diagram for DVI-FO-xx-MM 113 KB

Note: Lead time varies between 1 and 15 weeks depending on quantity. Contact an NTI product consultant for additional lengths up to 328 feet (100 meters).

(0)DVI Active Optical Cable

NTI Part #	Description	Qty
DVI-FO-33-MM	Length: 33 feet (10 meters)
DVI-FO-49-MM	Length: 49 feet (15 meters)
DVI-FO-65-MM	Length: 65 feet (20 meters)
DVI-FO-82-MM	Length: 82 feet (25 meters)
DVI-FO-98-MM	Length: 98 feet (30 meters)
