4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port

4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port

NTI Part #: SE-4K18GB-4RS-Group

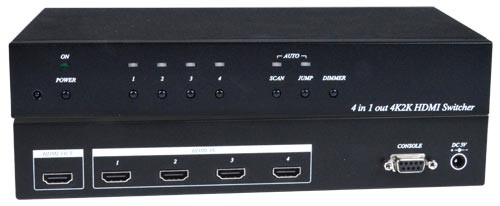

VIDMUX® SE-4K18GB-4RS (Front & Back)

Additional Images/Videos

NTI Part #: SE-4K18GB-4RS-Group

The VIDMUX® 4K 18Gbps HDMI Switch routes digital Ultra-HD 4Kx2K 60Hz 4:4:4 video and audio from up to four HDMI sources to one HDMI display.

Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
18Gbps bandwidth
HDMI 2.0, HDCP 2.2
IR, RS232 control

Talk to a live agent

ROHS Compliant 4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port
CE Compliant 4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port

Scroll Down to Get Quote

Overview

The VIDMUX® 4K 18Gbps HDMI Switch routes digital Ultra-HD 4Kx2K 60Hz 4:4:4 video and audio from up to four HDMI sources to one HDMI display.

Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
Eliminates redundant video displays.
Control the switch via the front panel interface, infrared remote (IR) control or RS232.
HDMI features supported:
- HDMI 2.0
- Up to 48-Bit Deep Color
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- LPCM, Dolby, DTS
- Bandwidth up to 600 Mhz (18Gbps).
- Support for CEC (consumer electronic control) compatible devices.
- HDR support.
- 3D
HDCP 2.2 and 1.4 compliant.
Features Auto Scan and Auto Jump switching functions.
- Auto scan – when the selected video input is inactive for over 0.5 seconds, the switch will automatically display the video from the next active input.
  - When using the previous/next buttons/commands with the IR remote control or RS232, the switch will skip over the inactive inputs.
- Auto jump – automatically switches to the video signal of a newly connected video input.

Specifications

Video Input

Four female HDMI connectors.
Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
Supports HDCP 2.2/1.4
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Video Output

One female HDMI connector.
Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
Supports HDCP 2.2/1.4
Max data rate: 18Gbps

Power

Input: 100 to 240 VAC at 50 or 60 Hz via AC Adapter.
Output: 5VDC, 1A

Dimensions

WxDxH (in): 9.96x5.63x1.58 (253x143x40 mm).

Environmental

Operating temperature: 32 to 131°F (0 to 55°C).
Storage temperature: -4 to 185°F (-20 to 85°C).
Operating/storage relative humidity: 0 to 95% non-condensing RH.

MTBF

43,800 hours

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

Cables

Interface cables between the video sources/displays and the switch are required for proper operation.
- Supports cable lengths to 20 feet for 4Kx2K resolutions at 60Hz and lengths to 50 feet for 1080p at 60Hz using passive HDMI cables.
  - Cables longer than 50 feet can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
Use HD-xx-MM HDMI cables to connect an HDMI source or display.
- HD-3/6/10/15/20-MM supports resolutions to 4K@60Hz.
- HD-30/50/75/100-MM supports resolutions to 1080p@60Hz.
  - HD-75/100-MM have a built-in digital video equalizer for extending HD signals up to 1080p at 60Hz. These cables are directional, with one plug end marked for the display.
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
- HD-ACT-20/25/30/40/50/60-MM supports resolutions to 4K@60Hz (18 Gbps).
- HD-ACT-75/100-MM supports resolutions to 4K@30Hz (10.2 Gbps).
Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
- Does not support 4Kx2K resolutions.
Cables not included.

Control Methods

Front Panel Interface

Standard control method.
LEDs indicate currently selected port and mode of operation.
- LED brightness is adjustable.
Configuration and control can be done using the front panel buttons.

RS232 Control Option

Standard control method.
Configuration and control can be done through the serial port.
- Female DB9 serial connector.
Baud rate fixed at 9600.

IR Remote Control

Standard control method.
Configuration and control can be done using the included IR remote control.

Application Drawings

4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port

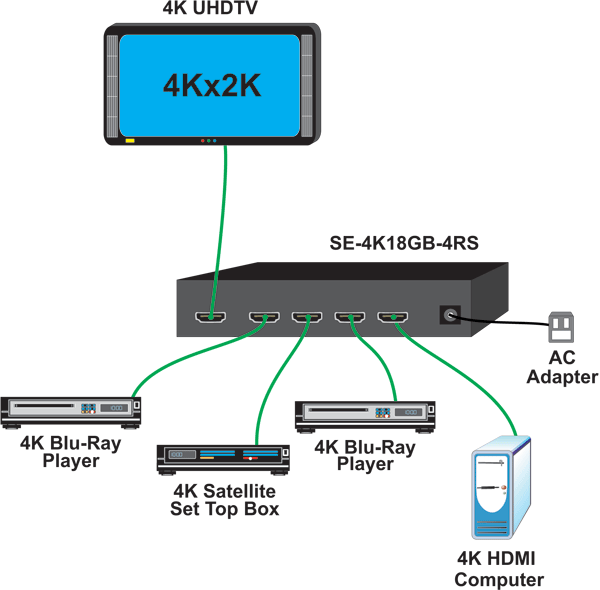

How to share one 4Kx2K 60Hz 4:4:4 HDMI monitor among four Ultra-HD HDMI video sources.

Downloads

Data Sheet:

4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port 158 KB

(0)4-Port 4K 18Gbps HDMI Switch with IR & RS232 Control

NTI Part #	Description	Qty
SE-4K18GB-4RS	4-Port 4K 18Gbps HDMI Switch with IR & RS232 Control
