Articulating Wall Mount Flat Panel LCD Monitor Arm ergonomic monitor Keyboard mouse brackets
ARM-WL-KB-BR
ARM-WL-KB-BR

Additional Images/Videos

Wall Mount Keyboard/Mouse Bracket

NTI Part #: ARM-WL-KB-BR-Group
The LCD monitor arms and mounting brackets allow effortless height, tilt and rotation adjustment of the monitor by hand.
Also known as: LCD Arms, monitor arms, LCD brackets, monitor brackets, flat panel monitor arm, Flat Panel LCD Arms, Flat Screen Arms, LCD Monitor Arm, Wall Mount, Desk Mount, LCD Custom Mounting Solutions.

Talk to a live agent

Scroll Down to Get Quote

Specifications

  • Load capacity: up to 10 lbs. (4.5 kg)
  • Swing out adjustable mouse tray
  • Spring pressed clamp and rubber cushions tightly hold any keyboard in position.
  • Range of motion:
    • Arm side-to-side rotation: 180°.
    • Arm vertical adjustment: 90°.
    • Tray rotation: 360°.
    • Tray tilt adjustment: 15° up and 25° down.
  • Includes:
    • Keyboard platform with mouse tray.
    • Wall mount bracket (with anchor screws)
  • Color: white
  • Warranty: two years

Application Drawings

  • Wall Mount Keyboard/Mouse Bracket
    Wall Mount Keyboard/Mouse Bracket
    ARM-WL-KB-BR

CAD Drawings

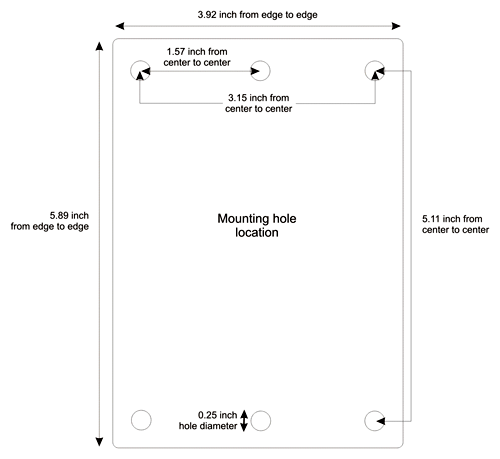

  • Wall Mount Bracket for LCD Monitor Arms
    Loading image...

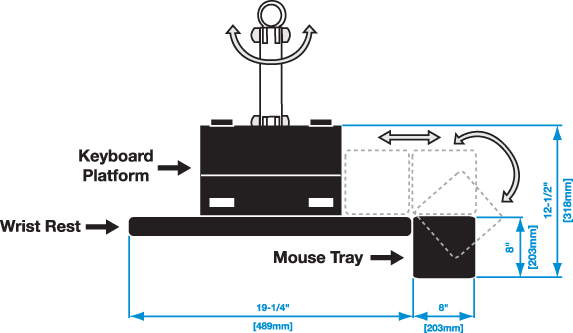

  • Wallmount Keyboard/Mouse Bracket (ARM-WL-KB-BR)
    Loading image...
    CAD Drawing for ARM-WL-KB-BR

(0)Monitor Arms

NTI Part # Description Reach (in.) Load (lbs.) Color Qty
ARM-WL-KB-BR Wall Mount Keyboard/Mouse Bracket 19 up to 10 White
