Drive up to 4 remote displays from one DVI video source

DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet

NTI Part #: VOPEX-FODVI-SC4-MDP-Group

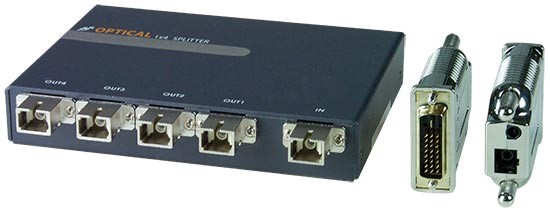

VOPEX-FODVI-SC4-MDP Optical Splitter and ST-1FODVI-R-SC-MDP Remote Unit (Front & Back)
VOPEX-FODVI-SC4-MDP Optical Splitter and ST-1FODVI-R-SC-MDP Remote Unit (Front & Back)
NTI Part #: VOPEX-FODVI-SC4-MDP-Group
The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution DVI video to up to four displays up to 3,280 feet (1,000 meters) from a computer using single-strand SC multimode fiber optic cable.

The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by single-strand multimode SC fiber optic cable.
Also known as: DVI-D splitter extender fiber, multiple DVI monitors, digital DVI video distribution over SC multimode fiber cable, optical monitor splitter, share video, split DVI video

Talk to a live agent

  • CE Compliant DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet
  • FCC Compliant DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet
Scroll Down to Get Quote

Overview

The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution DVI video to up to four displays up to 3,280 feet (1,000 meters) from a computer using single-strand SC multimode fiber optic cable.


The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by single-strand multimode SC fiber optic cable.

  • Broadcast real-time DVI video to multiple display locations.
  • Supports crisp and clear resolutions to 1920x1200.
  • Signal transmission via single strand multimode SC fiber optic cable – no RF interference.
  • Transmitter and receivers have small form factor for easy connection and placement.
  • Cables can be installed in conduit prior to transmitter/receiver installation.
  • EDID learning for the support of any DVI display device.
  • Complies with DVI 1.0 standard.
  • Ideal solution for digital signage applications.

Specifications

Optical Splitter

Connectors
  • Five SC fiber connectors
Cables
  • Use a FIBER-S-SCSC-50-xM (simplex multimode SC 50-micron) multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).
  • Cables not included.
Power
  • Powered from computer connected to transmitter
Dimensions
  • WxDxH: 4.72x4.06x0.94 in (120x103x24 mm)
Warranty
  • Two years

Distances & Resolutions
Distance (feet) Maximum Resolution
3,280 1024x768 (XGA)
2,300 1280x1024 (SXGA)
1,650 1600x1200 (UXGA)
984 1920x1200 (WUXGA)

Transmitter and Receivers

Video
  • Connectors (for transmitter and receivers): one male DVI-D single link connector and one SC fiber connector.
  • Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
  • EDID learning for the support of any DVI display device.
  • Low RFI/EMI.
  • Laser Class 1 Safety compliant.
  • Optical source: 850 nm VCSEL.
  • Supports 50/125um SC type multi-mode fiber optic cable.
  • Frequency Bandwidth : 1.65Gbps (Single Link)
Power
  • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapters included.)
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C).
Regulatory Approval
  • FCC, CE
Dimensions
  • WxDxH: 1.57x2.64x0.59 in (40x67x15 mm)
Warranty
  • Two Years

Application Drawings

  • DVI Splitter/Extender via Multimode Fiber Optic Cable

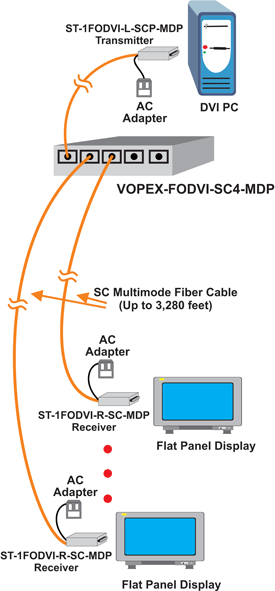

    DVI Splitter/Extender via Multimode Fiber Optic Cable
    How to use one computer to display the same high-resolution image on four monitors.

(0)DVI Splitter/Extender via Multimode Fiber Optic Cable

NTI Part # Description Qty
VOPEX-FODVI-SC4-MDP Splitter: 1 SC Fiber Input, 4 SC Fiber Outputs
