2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet - No Drivers Required - Multiplatform Support

NTI Part #: USB3-2FOLCx-2-Group

The XTENDEX® 2-Port USB 3.0 Extender via Fiber Optic Cable extends two USB devices up to 1,148 feet (350 meters) using a duplex LC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to two USB 3.0/2.0/1.1 devices. The local and remote units are interconnected via two-strand LC singlemode or multimode fiber optic cable.

Supports USB 3.0/2.0/1.1 devices.
Choose between singlemode or multimode models.
No drivers required.
Compatible with Windows 7/10, Mac OS 10/11, Linux.

Talk to a live agent

ROHS Compliant 2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet - No Drivers Required - Multiplatform Support
CE Compliant 2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet - No Drivers Required - Multiplatform Support
FCC Compliant 2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet - No Drivers Required - Multiplatform Support

Scroll Down to Get Quote

Overview

Supports fully transparent USB connection - compatible with USB computers (Windows 7/10, Mac OS 10/11, Linux) and their associated peripherals.
Signal transmission up to 1,148 feet (350 meters) via a two-strand LC fiber optic cable.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.
Compliant with USB 3.0 specifications.
- Backwards compatible with USB 2.0/1.1.
- Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices (flash drives, external hard drives, portable monitors, smartphones/tablets with USB 3.0 Type-C port, etc.).
Supports full 900mA current.
Supports Plug-n-Play specification.
Low RFI/EMI for sensitive applications.
No drivers required.
Cables can be installed in conduit prior to extender installation.

Specifications

Local Unit

One female USB 3.0 Type Micro B connector.
Two female LC fiber optic ports.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.
Compatible with USB computers (Windows 7/10, Mac OS 10/11, Linux).

Remote Unit

Two female USB Type A connectors.
- Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Two female LC fiber optic ports.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.

Power

Local unit: powered from attached computer.
Remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
- Output: 5VDC, 3A
- Each USB port supports full 900mA current.

Dimensions

Local and remote unit WxDxH (in): 2.24x4.13x1.10 (57x105x28 mm).

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 158°F (-20 to 70°C).
Operating relative humidity: 20 to 80% non-condensing RH.
Storage relative humidity: 10 to 90% non-condensing RH.

Max Distance

1,148 feet (350 meters) over a duplex LC fiber optic cable.

Cables

USB3-2FOLC9-2: Use a duplex LC 9µm singlemode fiber optic cable to extend the receiver from the transmitter up to 1,148 feet (350 meters). (Cable not included.)
USB3-2FOLC50-2: Use a duplex LC 50µm OM3 (and above) multimode fiber optic cable to extend the receiver from the transmitter up to 1,148 feet (350 meters). (Cable not included.)
1.77 ft (540 mm) male USB 3.0 Type A to male USB 3.0 Type Micro B interface cable included.

Regulatory Approvals

CE, FCC, RoHS
TAA compliant

Warranty

Two years

Package Include

One transmitter unit
One receiver unit
One power supply
One 1.77 ft (540 mm) USB 3.0 Type A to USB 3.0 Type Micro B cable

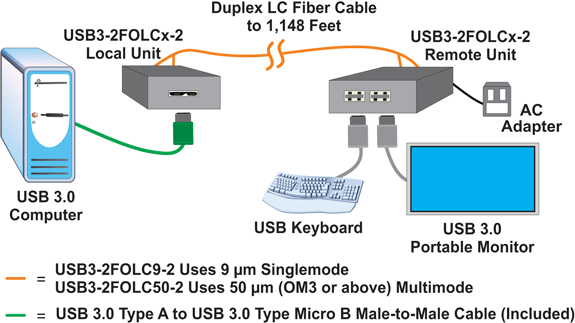

Application Drawings

2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet

Downloads

Data Sheet:

2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet 172 KB

(0)2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet

NTI Part #	Description	Qty
USB3-2FOLC50-2	50-Micron OM3 (and above) Multimode
USB3-2FOLC9-2	9-Micron Singlemode
