Stores and reproduces EDID information for an HDMI display.

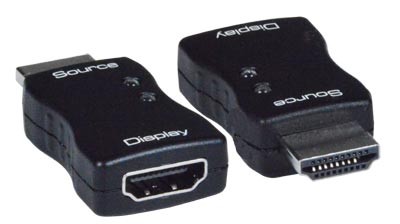

HD4K-EDID-EMLTR (Front & Back)
HD4K-EDID-EMLTR (Front & Back)

HDMI 2.0 EDID Emulator

NTI Part #: HD4K-EDID-EMLTR-Group

The HDMI 2.0 EDID Emulator copies the EDID of the desired HDMI display and connects directly to the HDMI source to ensure that the EDID is not lost in connections between devices such as switches, splitters, and extenders.


Supports headless operation – no monitor attached to source.

  • Headless operation
  • Video pass-through
  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • HDMI 2.0

Talk to a live agent

  • ROHS Compliant HDMI 2.0 EDID Emulator
  • CE Compliant HDMI 2.0 EDID Emulator
  • FCC Compliant HDMI 2.0 EDID Emulator
Scroll Down to Get Quote

Overview

The HDMI 2.0 EDID Emulator copies the EDID of the desired HDMI display and connects directly to the HDMI source to ensure that the EDID is not lost in connections between devices such as switches, splitters, and extenders.

  • Emulates an HDMI display (sink device) by providing Hot Plug Detect and EDID to the HDMI source device.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4, 2560x1440p (WQHD), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • HDMI features supported:
    • HDMI 2.0
    • 12-bit Deep Color
    • RGB, YCC 4:4:4, YCC 4:2:2
    • LPCM 2-Channel
    • Bandwidth up to 600 Mhz (18Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • 3D
    • HDR
  • HDCP 2.2 compliant.
  • Supports Learning and Emulation modes.
    • Learning mode: store a display's EDID for later use.
    • Emulation mode: provides EDID to the HDMI source device from the emulator's internal memory.
      • Supports headless operation – no monitor attached to source.
  • Pre-programmed with many standard resolutions with native set to 1080p.
    • Use learning mode to program other resolutions.
  • LED indicators provide signal status information.
  • Compact design for easy installation and operation.
  • No power supply - powered by video source.
  • Ideal for resolving signal handshaking problems between a source and a display.

Specifications

Connectors
  • One female HDMI port for display connection.
    • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz 4:4:4, 2560x1440p (WQHD), HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
      • Default resolution: 1080p.
  • One male HDMI port for source connection.
Power
  • Powered by video source.
Dimensions
  • WxDxH (in): 0.94x1.69x0.39 (24x43x10 mm).
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°°C
  • Storage temperature: -4 to 158°F (-20 to 770°C)
  • Operating relative humidity: up to 85% non-condensing RH.
  • Storage relative humidity: up to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA Compliant
Warranty
  • Two years

  • "Our church had an issue that 1920x1080 video signals from our camera and PC were not recognized by the NTI video sender through Ethernet connection by the TVs on the receiver side. Once the HD4K-EDID-EMLTR EDID adapter was installed (easily), the 1080p signals immediately became recognizable by the sender and transmitted to the TVs."

    Takahiro H.
    Boston, MA

  • "The HD4K-EDID-EMLTR HDMI 2.0 EDID Emulator works as advertised and was easy to install. Our end user has interactive displays from Lite the Nite Technologies. The associated PC did not always respond to assert signal or lack of it, and the PC/monitor connection would fail. Once the EDID emulator was installed, the PC/monitor connection always worked. This is a pretty nifty little device."

    George D.
    TSI, Inc
    Galion, OH
