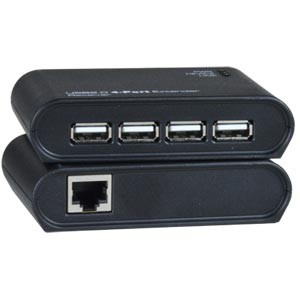

Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet – No Drivers Required

NTI Part #: USB2-C5-4LC-Group

The USB2-C5-4LC extends up to four self-powered or bus-powered USB 2.0 devices to 165 feet. The USB extenders consist of two units, the local unit and the remote unit, which are interconnected with CAT5/5e/6/6a/7 cable.

Also known as: USB extender, USB CAT5 UTP cable extension, USB booster, USB peripheral extender, USB active extension cable, extend USB device 165 feet via CAT5/5e/6/6a/7 network cable, 4-port USB hub extender system, USB balun, USB range extender.

Talk to a live agent

ROHS Compliant Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet – No Drivers Required
CE Compliant Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet – No Drivers Required
FCC Compliant Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet – No Drivers Required

Scroll Down to Get Quote

Overview

The XTENDEX® Low-Cost 4-Port USB 2.0 Extender extends four USB devices up to 165 feet (50 meters) using CAT5/5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via CAT5/5e/6/6a/7 cable.

Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, keyboards, etc.).
Extend up to 165 feet (50 meters) via a single CAT5/5e/6/6a/7 cable.
Transparent data extension.
Compatible with USB computers (PC, SUN, MAC).
Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Compliant with USB 2.0 specifications.
Supports Plug-n-Play specification.
No drivers required.

Specifications

Local Unit

One female USB Type B connector.
- Must connect directly to a computer; will not work connected to a USB hub.
One female RJ45 connector.
Supports a USB computer (PC, SUN, MAC).
Multiplatform support: Windows XP/7/Vista/8, Mac OS

Remote Unit

Four female USB Type A connectors.
One female RJ45 connector.
Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Supports self-powered and/or bus-powered USB devices.
- Does not support USB hubs.
Compatible with USB touch screen monitors, including HP Compaq L2105tm.

Power

Local unit: powered from attached computer.
Remote unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
- Optional universal power plug adapters available (not included).
The combined current consumption of the connected devices cannot exceed 1.5A.

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).

Dimensions

WxDxH: 3.75x2.68x0.92 in (95x68x23 mm).

Regulatory Approvals

CE, FCC, RoHS.

Max Distance

165 feet (50 meters) over CAT5/5e/6/6a/7 cable.

Cables

0.5-meter male USB Type A to male USB Type B interface cable included.
Use CAT5/5e/6/6a/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Package Includes

USB Extender (local and remote unit)
USB Type A to Type B male-to-male cable
User manual
US AC adapter

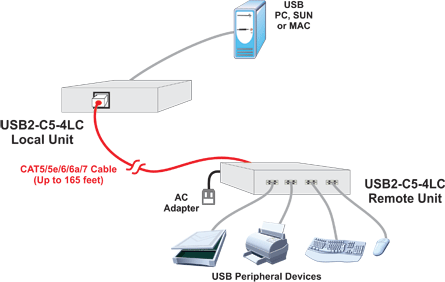

Application Drawings

Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet

Downloads

Data Sheet:

Low-Cost 4-Port USB 2.0 Extender via CAT5 up to 165 Feet 313 KB

User Manual:

USB2-C5-4LC - Installation & Operation Manual 1.4 MB

(0)USB 2.0 Extender, 4-Port

NTI Part #	Description	Qty
USB2-C5-4LC	Low-Cost 4-Port USB 2.0 Extender
