Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch

NTI Part #: RACKMUX-4K17-N-xHD4K-Group

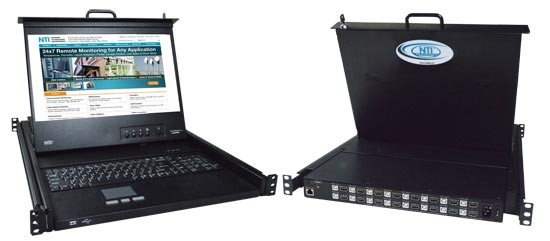

RACKMUX-4K17-N-16HD4K (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-4K17-N-xHD4K-Group

The RACKMUX® 4K KVM Drawer with Built-In 4K HDMI USB KVM Switch combines a rackmount 4Kx2K LCD monitor, keyboard, touchpad mouse and a 4K HDMI USB KVM Switch in a space-saving 1RU industrial strength drawer.

Also known as: rackmount kvm drawer with 4K HDMI USB KVM Switch, UHD console drawer, rack mount keyboard monitor drawer, 4Kx2K KVM drawers, 1RU keyboard LCD shelf

Ultra-HD 3840x2160 17.3" LCD
Built-in 4-/8-/16-port 4K HDMI USB KVM Switch

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch
CE Compliant Rackmount 4K KVM Drawer with 4K HDMI USB KVM Switch

Scroll Down to Get Quote

Overview

Available with forward-folding 17.3" TFT/LCD monitor.
Supports Ultra-HD 4Kx2K resolutions (3840x2160@30Hz)
Available with a 4-, 8-, or 16-port 4K HDMI USB KVM Switch.
- Control up to 16 Ultra-HD 4Kx2K 30Hz USB computers.
Compatible with USB computers (PC, SUN and MAC).
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Torque-friction hinges - monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
Rugged steel construction with durable powder coat finish.
LCD auto-shutoff in closed position.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Designed to be a one-person job when installing the drawer.
Cable management tray included.

Specifications

Power

100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
Power consumption:
- RACKMUX-4K17-N-4HD4K and RACKMUX-4K17-N-8HD4K: 35W
- RACKMUX-4K17-N-16HD4K: 40W

Dimensions

Without cable management tray WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
With cable management tray WxDxH: 19x27.5x1.75 inches. (483x699x44 millimeters)
Handle adds an additional 1.5" to the depth when monitor is in closed position.
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS
TAA compliant

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Warranty

Two years

RACKMUX® Rackmount 4K KVM Drawer Specifications
UNIMUX™ 4K HDMI USB KVM Switch Specifications

Downloads

(0)4K KVM Drawers with 4K HDMI USB KVM Switch

NTI Part #	Description	Qty
RACKMUX-4K17-N-4HD4K	# of CPUs: 4
RACKMUX-4K17-N-8HD4K	# of CPUs: 8
RACKMUX-4K17-N-16HD4K	# of CPUs: 16

Collapse all Expand all Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part #	Description	Qty
RL-T15-TEL	Mounting Bracket for Two-Post Style Telco Rack

(0)HDMI Male-Male Cables

NTI Part #	Length	Qty
HD-3-MM	3 feet
HD-6-MM	6 feet
HD-10-MM	10 feet
HD-15-MM	15 feet

(0)USB 2.0 A-B Cables

NTI Part #	Length	Qty
USB2-AB-3-5T	3 feet
USB2-AB-6-5T	6 feet
USB2-AB-10-5T	10 feet
