4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7

NTI Part #: ST-C6DP4K-131-Group

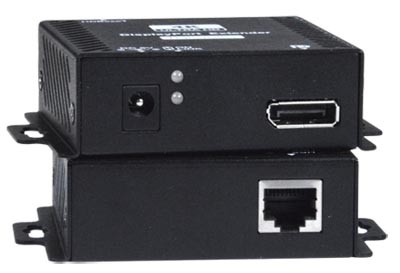

The XTENDEX® 4K DisplayPort HDBase-T Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 DisplayPort video and audio signals up to 131 feet over a single CAT6a/7 solid cable using HDBase-T technology. Each video extender consists of a local unit that connects to a DisplayPort source and a remote unit that connects to a DisplayPort display.

Resolutions to Ultra-HD 4Kx2K 30Hz 4:4:4
DisplayPort 1.2a

Talk to a live agent

ROHS Compliant 4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7
4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7Digital Signage Product
CE Compliant 4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7

Scroll Down to Get Quote

Overview

Transmits an uncompressed DisplayPort signal over a single CATx cable.
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz 4:4:4, and HDTV resolutions to 1080p @60Hz.
- Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
Compliant with DisplayPort v1.2a specifications.
Video bandwidth up to 9Gbps.
HDCP compliant.
Integrated mounting brackets for easy surface/wall mounting.

Specifications

Local Unit

One female DisplayPort connector for video source.
One female RJ45 port for sending UHD video and audio.
HDCP compliant.

Remote Unit

One female DisplayPort connector for display.
One female RJ45 port for receiving UHD video and audio.
Supported video resolutions:
- Ultra-HD 4Kx2K 30Hz 4:4:4 resolutions (3840x2160 and 4096x2160 @30Hz).
- HDTV resolutions to 1080p (1920x1080@60Hz).
Supports embedded digital audio through DisplayPort compatible displays or audio receivers.
HDCP compliant.
Max data rate: 9Gbps

Power

Local and remote unit:
- Input: 100 to 240 VAC at 50 to 60 Hz via AC adapter.
- Output: 5VDC, 2A
- Power consumption:
  - Local unit: 5W
  - Remote unit: 8W

Dimensions

WxDxH (in): 3.62x2.72x0.98 (92x69x25 mm)

Environmental

Operating temperature: 14 to 113°F (-10 to 45°C).
Storage temperature: -22 to 158°F (-30 to 70°C).
Operating and storage relative humidity: up to 95% non-condensing RH.

Regulatory Approval

CE, RoHS

Warranty

Two years

Max Distance

Extend a 4Kx2K signal up to 131 feet (40 meters) with solid CAT6a/7 cable and 115 feet (35 meters) with solid CAT5e/6 cable.
Extend a 1080p signal up to 230 feet (70 meters) with solid CAT6a/7 cable and 197 feet (60 meters) with solid CAT5e/6 cable.

Distances and Resolutions for CAT5e/6/6a/7 Cables
Cable	Distance	Maximum Resolution
CAT5e/6	115 ft (35 m)	3840x2160 and 4096x2160 at 30Hz. 4:4:4 1080p at 60Hz
CAT5e/6	197 ft (60 m)	1080p at 60Hz
CAT6a/7	131 ft (40 m)	3840x2160 and 4096x2160 at 30Hz. 4:4:4 1080p at 60Hz
CAT6a/7	230 ft (70 m)	1080p at 60Hz

Cables

Interface cables between the video source/display and the transmitter/receiver are required for proper operation.
Use DP-xx-MM to connect a DisplayPort source or display (not included).
Use CATx straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

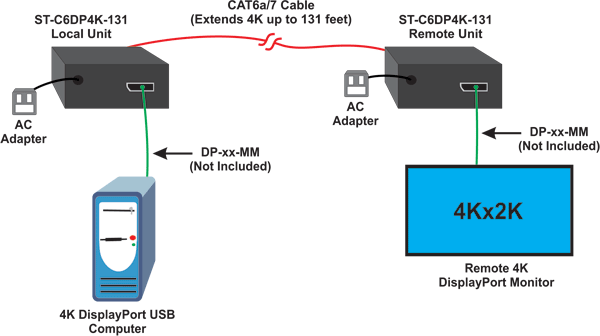

Application Drawings

4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7

Downloads

Data Sheet:

4K 18Gbps HDMI Extender Over IP with IR and RS232 333 KB

(0)DisplayPort Cables, Male to Male

NTI Part #	Length	Qty
DP-3-MM	3 feet
DP-6-MM	6 feet
DP-10-MM	10 feet
DP-15-MM	15 feet
