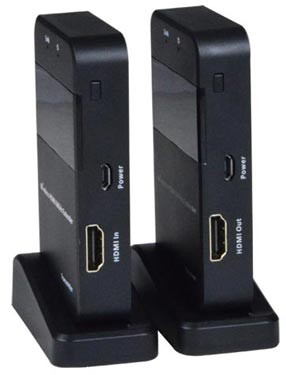

ST-WL4K-98 (Local and Remote Unit)

4K HDMI Wireless Extender

NTI Part #: ST-WL4K-98-Group

The XTENDEX® 4K HDMI Wireless Extender transmits uncompressed digital Ultra-HD 4Kx2K 30Hz 4:4:4 HDMI video and audio signals up to 98 feet over a 60GHz wireless network. Each video extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display.

Supports 4K, 2K, 1080p & 1920x1200 input/output resolutions.
Extend up to 98 feet over 60GHz Wireless Network
HDMI 1.4, WiHD 1.1

Talk to a live agent

ROHS Compliant 4K HDMI Wireless Extender
CE Compliant 4K HDMI Wireless Extender
FCC Compliant 4K HDMI Wireless Extender

Scroll Down to Get Quote

Overview

Uncompressed signal transmission over wireless network.
- Frequency Band Range: 60GHz
- Wireless Range: Up to 98 feet (30 meters), line-of-sight
  - Designed to transmit inside of a room.
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @30Hz YUV 4:4:4, 2K resolution 2048x1080 @60Hz, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
HDMI features supported:
- HDMI 1.4
- Up to 36-bit Deep Color
- RGB, YCbCr 4:4:4, YCbCr 4:2:2
- LPCM, Dolby Digital, Dolby Digital+, Dolby TrueHD, and DTS-HD Master Audio
- Support for CEC (consumer electronic control) compatible devices.
- 3D
HDCP 2.2 and WiHD 1.1 compliant.
Connect up to 10 receivers to one transmitter.
- Video is sent to one receiver at a time.
- Use the front panel button on the transmitter to switch between receivers.
Connect up to 16 transmitters to one receiver.
- Video is sent from one transmitter at a time.
- Use the front panel button on the receiver to switch between transmitters.
Supports EDID pass-through with a filter that removes unsupported resolutions.
LED indicators provide signal status information.

Specifications

Local Unit

Compatible with a computer or UHD video source with HDMI output.
One female HDMI port for display connection.
One female USB Type Micro-B port for power connection.
Frequency Band Range: 60GHz
Latency: <1ms

Remote Unit

One female HDMI port for display connection.
One female USB Type Micro-B port for power connection.
Supports Ultra-HD 4Kx2K (3840x2160 @30Hz YUV 4:4:4), 2K resolution 2048x1080 @60Hz, HDTV resolutions to 1080p @60Hz, and up to 1920x1200 (WUXGA).
Supports embedded digital audio through HDMI compatible TVs or audio receivers.

Power

Local and remote unit:
- Input: 100 to 240 VAC at 50 or 60 HZ via USB power adapters (included).
- Output: 5VDC, 1A
- Power consumption: 4.15W (max)

Max Distance

98 feet (30 meters), line-of-sight.
- Designed to transmit inside of a room.

Cables

Interface cables between the video source/displays and the splitter are required for proper operation.
Use HD-xx-MM cable to connect an HDMI source or display.
- HD-3/6/10/15-MM supports resolutions to 4K@30Hz.
- HD-25/30/50-MM supports resolutions to 1080p@60Hz.
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
- Supports resolutions to 4K@30Hz.
Use DVI-HD-xM-MM to connect a DVI source or display up to 5 meters.
- Supports resolutions to 2048x1080 @60Hz, 1080p@60Hz, and 1920x1200 @60Hz.
Use DP-HD-xx-MM to connect a DisplayPort source up to 15 feet.
- Supports resolutions to 4K@30Hz.
Use USB3C-HD4K-xx-MM to connect a USB Type-C video source up to 10 feet.
- Supports resolutions to 4K@30Hz.
Cables not included.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and storage relative humidity: 20 to 90% non-condensing RH.

Dimensions

WxDxH: 3.54x2.2x0.67 in (90x56x17 mm)

Regulatory Approvals

CE, FCC, RoHS

Warranty

Two years

Package Includes

One transmitter unit
One receiver unit
Two USB power adapters (US).
Two USB Type A to Micro-USB Type B male to male cables
Two vertical stands

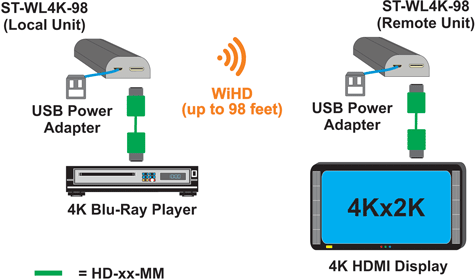

Application Drawings

HDMI Wireless Extender to 98 Feet

Downloads

Data Sheet:

HDMI Wireless Extender

(0)HDMI Wireless Extender to 98 Feet

NTI Part #	Description	Qty
ST-WL4K-98	4K HDMI Wireless Extender
