The XTENDEX® 4K 10.2Gbps HDMI USB KVM Extender via CAT6/7 or Fiber provides remote KVM (USB keyboard, USB mouse and 4Kx2K 30Hz UHD HDMI monitor) access to a USB computer up to 328 feet (100 meters) away via CAT6/6a/7 cable, 6.21 miles (10 km) via simplex LC singlemode fiber optic cable, or 1,640 feet (500 m) via simplex LC multimode fiber optic cable.

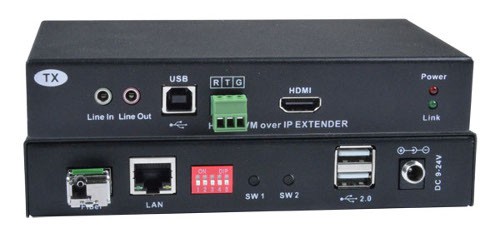

Each KVM extender consists of a local unit that connects to a computer, and a remote unit that connects to an HDMI monitor, bi-directional 3.5mm stereo audio speakers and microphone, RS232, and up to four USB devices (keyboard, mouse, flash drive, HDD, or touchscreen display).
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- Signal transmission via one CAT6/6a/7 cable or one single-strand singlemode/multimode LC fiber optic cable.
- Using CAT6/6a/7 cable:
- Extend a 4Kx2K signal up to 328 feet (100 meters).
- Extend a 1080p or 1920x1200 signal up to 492 feet (150 meters).
- Use with a Gigabit switch to extend a total distance of 656 feet (200 meters) between the transmitter and receiver – the transmitter and receiver can each be extended 328 feet (100 meters) from the switch.
- Using singlemode 9-micron cable, extend to 6.21 miles (10 km).
- Using multimode 50-micron cable, extend to 1,640 feet (500 meters).
- HDMI features supported:
- HDMI 1.4
- 36-bit Deep Color
- RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Dolby, DTS, Stereo, and LPCM
- Bandwidth up to 340 MHz (10.2 Gbps)
- HDCP 1.4 compliant.
- Four USB 2.0 ports for keyboard, mouse, flash drive, HDD or touchscreen display.
- Keyboard and mouse are hot-pluggable.
- Supports Plug-and-Play specification.
- Using an unmanaged Gigabit network switch, extend up to 32 pairs in Point-to-Point connections.
- Use the DIP switch on the transmitter and receiver to specify the ID for the unit.
- Transmitter and receiver units with the same ID will connect to each other. (Only Point-to-Point connections are supported.)
- Supports full-duplex RS232 up to 115200 baud.
- EDID pass-through for the support of any HDMI display device.
- Mounting brackets included for easy surface/wall mounting.
