USB2-HUB-IND-7
USB2-HUB-IND-7

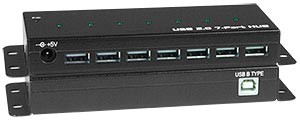

Industrial USB 2.0 Bus-Powered Hub, 7 Port

NTI Part #: USB2-HUB-IND-7
Connect up to seven USB 2.0 high-speed peripheral devices to a PC or MAC in harsh environments.
Also known as: 7-port USB HUB, USB splitter, self-powered USB hub, bus-powered USB port expander.

Talk to a live agent

Overview

The Industrial USB 2.0 7 Port Bus-Powered Hub connects up to seven USB 2.0 high-speed peripheral devices to a PC or MAC in a harsh environment.

  • Connect up to seven USB 2.0 high-speed peripheral devices to a PC or MAC.
  • Ideal for industrial applications in harsh environments at high temperatures up to 158°F (70°C).
  • Compliant with USB 2.0 and USB 1.1 specifications.
  • Hubs can be cascaded to connect up to 127 devices.
  • Supports Plug-n-Play specification.
  • Hot-swappable.
  • Powder coated metal enclosure.
  • Attached mounting brackets.

Specifications

Connectors
  • Seven female USB Type A connectors.
    • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • One female USB Type B connector.
    • Supports USB-enabled computers (PC and MAC).
Power
  • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
  • Output: 5VDC, 8A
  • Each port supports full 500mA current
    • Overcurrent protection for each downstream port.
Dimensions
  • WxDxH (in): 6.50x2.09 x0.88 (165x53x22 mm).
Environmental
  • Operating temperature: 32°F to 158°F (0°C to 70°C).
  • Storage temperature: -22°F to 185°F (-30°C to 85°C).
  • Operating/storage relative humidity: 10 to 90% non-condensing RH.
MTBF
  • 354,359 hours
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Package Includes
  • 7-Port USB Hub
  • Power adapter
  • 1 ft (305 mm) USB 2.0 male Type A to male Type B male cable.
