Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

NTI Part #: RACKMUX-VS17-T-8USBHD-Group

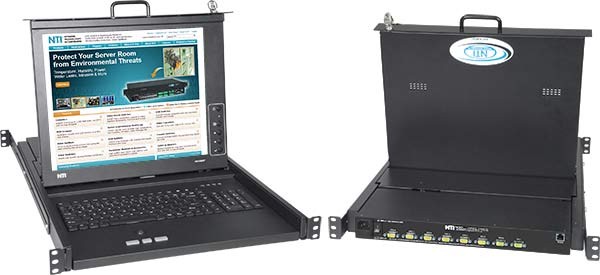

RACKMUX-VS17-NT-8USBHD (Front and Back)

Additional Images/Videos

NTI Part #: RACKMUX-VS17-T-8USBHD-Group

The RACKMUX® SUN USB KVM Drawer with Integrated High Density VGA USB KVM Switch combines a rackmount 17" (432 mm) LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port high density VGA USB KVM Switch into a space-saving 1RU industrial strength drawer.

Also known as: Integrated SUN USB KVM drawer and USB switch, KVM switch in rackmount 1RU KVM drawer, 1RU rackmount LCD monitor SUN USB KVM switch.

Product Highlight

Single-Person Installation

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch
CE Compliant Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

Scroll Down to Get Quote

Overview

The RACKMUX® SUN USB KVM Drawer with Integrated High Density VGA USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port High Density VGA USB KVM Switch into a space-saving 1RU industrial strength drawer.

Available with forward-folding 17" (432 mm) TFT/LCD VGA monitor.
Crisp and clear 1280x1024 video resolution.
Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
Control up to eight USB computers (PC, SUN, and MAC).
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large padded wrist-rest.

Designed to be a one-person job when installing the drawer.
Torque-friction hinges - monitor does not wobble, spring, or slam shut.
LCD auto-shutoff in closed position.
Drawer locks into place when open to prevent it from sliding out of the rack.
Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
Keyboard available in: English(US).
Cabling runs are simplified with NTI's high density KVM switch cables.
Available with Sunlight Readable monitor – call an NTI Product Consultant for more information.

Specifications

Power

100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)

Dimensions

WxDxH: 19x23.9x1.75 Inches (483x607x44 millimeters).
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS
TAA compliant

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and storage relative humidity: 20 to 90% non-condensing RH.

Warranty

Two years

Application Drawings

Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

CAD Drawings

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

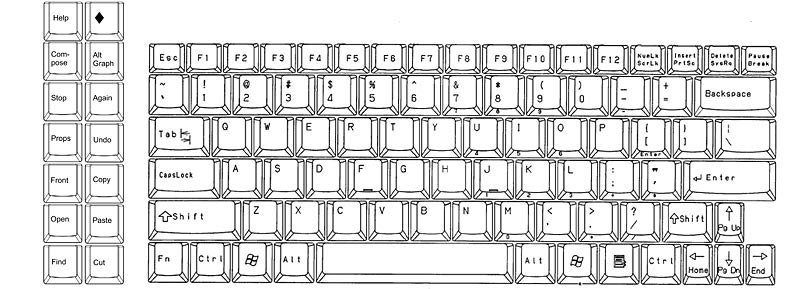

Keyboard Layouts

Rackmount SUN USB KVM Console Drawer

RACKMUX-VS17-T-8USBHD, RACKMUX-DS17-T, RACKMUX-VS17-T(S)
Rackmount SUN USB KVM Drawer with Numeric Keypad

RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)

Downloads

Video:

RACKMUX NTI KVM Drawers: Single-Person Installation
Excluding 20" models

(0)SUN USB KVM Drawers with USB KVM Switch

NTI Part #	Mouse	Keyboard Features	Number of Ports	Qty
RACKMUX-VS17-T-8USBHD	Trackball	N/A	8
RACKMUX-VS17-NT-8USBHD	Trackball	Numeric keypad	8

Collapse all Expand all Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part #	Description	Qty
RL-T15-TEL	Mounting Bracket for Two-Post Style Telco Rack

(0)Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable

NTI Part #	Length	Qty
HDUSBVEXT-3-MM	3 feet
HDUSBVEXT-6-MM	6 feet
HDUSBVEXT-10-MM	10 feet
HDUSBVEXT-15-MM	15 feet
