External 48VDC to +5.5VDC, 4A Power Converter

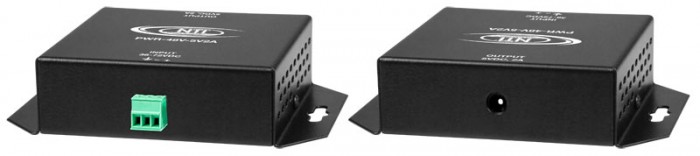

External 48VDC to +5.5VDC, 4A Power Converter

NTI Part #: PWR-48V-5-5V4A

PWR-48V-5-5V4A - External 48VDC to +5.5VDC, 4A Power Converter

Additional Images/Videos

NTI Part #: PWR-48V-5-5V4A

Qty:

DC-DC Power Converters
Power converters to convert variable DC input voltages to stabilized output voltages.

External 48VDC Converters | External 24VDC Converters | Internal 48VDC Converters

Talk to a live agent

Overview

Overview

External DC-DC converter.
Use the power converter to install NTI products in a Telecom environment.
Accepts 18~72VDC (48 VDC nominal).
Accepts positive or negative polarity.
Outputs +5.5VDC and can handle 4A load.
3-pole detachable screw terminal for connecting 48V input.
2.1x5.5 mm (0.083x0.22 in) male DC power jack.
Dimensions WxDxH: 3.18x3.09x1.08 in (81x78x27 mm)
Includes a 3-foot (0.91-meter) female-to-female DC power cable.
MTBF: 186,911 hrs
Operating temperature: -13 to 158°F (-25 to 70°C).
Efficiency: 80%, ±5%
Regulatory Approvals: RoHS
