4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 Feet

4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 Feet

NTI Part #: ST-C64K-300-Group

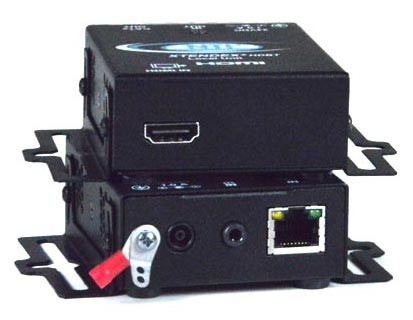

XTENDEX® ST-C64K-300 (Remote & Local Unit)

NTI Part #: ST-C64K-300-Group

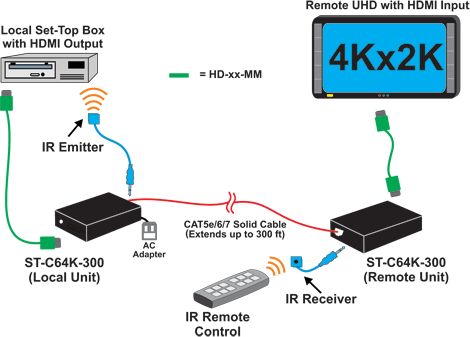

The XTENDEX® 4K HDMI Extender transmits uncompressed digital HDMI signal and IR up to 300 feet over a single CATx solid cable. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

Also known as: 4K HDMI extender over CAT6, remote digital HDMI 4Kx2K monitor, HDMI transmitter/receiver, ultra high definition extender, HDMI range extender, extend UHD 3840x2160 video IR

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant 4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 Feet
4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 FeetDigital Signage Product
CE Compliant 4K HDMI Extender via One CATx: Extend 4Kx2K up to 300 Feet

Scroll Down to Get Quote

Overview

Description

Transmits HDMI signal over one CAT5e/6/6a/7 solid cable.
- Extend up to 150 feet with solid unshielded CAT5e/6 cable.
- Extend up to 250 feet with solid shielded CAT5e/6 cable.
- Extend up to 300 feet with solid CAT6a/7 cable (23 AWG).
Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
Only one power supply is necessary to power both the local and remote units.
HDMI features supported:
- HDMI 1.4
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 340 MHz (10.2 Gbps).
- Support for CEC (consumer electronic control) compatible devices.
- Lip Sync
HDCP compliant.
Supports the DDC2B protocol.
Mounting brackets included for easy surface/wall mounting.
High quality, rugged steel construction with durable powder coat finish.

Specifications

Local Unit

Compatible with a computer or Ultra-HD video source with HDMI output.
One female HDMI connector.
One female 3.5mm port for IR emitter.
One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal.

Remote Unit

One female HDMI connector for display.
One female 3.5mm port for IR receiver.
- IR frequency range: 33 to 40 kHz.
- Center Carrier Frequency: 36 kHz.
One female RJ45 port for sending/receiving high definition video/audio signals, IR signal, CEC signal, and DDC signal.
Supported video resolutions:
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200
Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Auto equalization for different lengths of CAT5e/6/7 cable.

Dimensions

WxDxH (in): 2.54x3.08x1.08 (65x78x27 mm)

Power

Powered from a single power supply attached to either the local or remote unit.
Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating/storage relative humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA compliant

Max Distance

150 feet (46 meters) over CAT5e/6 solid unshielded shielded cable.
250 feet (76 meters) over CAT5e/6 solid shielded cable.
300 feet (91 meters) over CAT6a/7 solid cable (23 AWG).

Cables

Use HD-xx-MM cable to connect an HDMI source or display.
Use DVI-HD-xx-MM cable to connect a DVI source or display.
Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
- CAT5e/6 solid unshielded: up to 150 feet.
- CAT5e/6 solid shielded: up to 250 feet.
- CAT6a/7 solid (23 AWG): up to 300 feet.

Warranty

Two years

Compatible NTI Products

Combine NTI's extenders, switches, splitters and cables for complex applications
- Low-Cost 4K HDMI Video Matrix Switch
  (SM-nXm-4K18GB-LC)
  - Each output on the switch must be set to 3840x2160 @ 30Hz.
