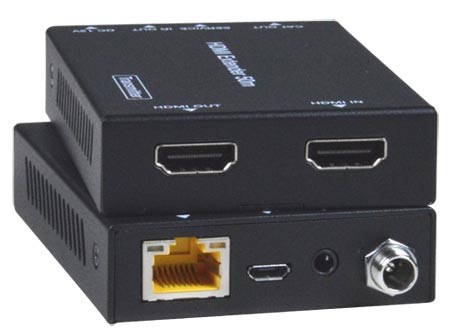

4K 18Gbps HDMI Extender via One CAT6/6a/7: Extend up to 197 feet

Local Unit

• Host Connection
  • Compatible with a computer or HDTV video source with HDMI output.
  • One female HDMI connector.
  • One female RJ45 port for sending high definition video/audio signals.
  • One female 3.5mm port for IR emitter (included).
  • Supports HDCP 2.2.
• Local Access
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @60Hz 4:4:4).
  • One female HDMI connector for local HDMI display.

Remote Unit

• One female HDMI connector for display.
• One female RJ45 port for receiving high definition video/audio signals.
• Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @60Hz 4:4:4).
• One female 3.5mm port for IR receiver (included).

Power

• Powered from a single power supply attached to either the local or remote unit.
• Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
• Output: 12 VDC, 1A
• Power consumption: 4.44W

Dimensions

• WxDxH (in): 2.4x3.46x0.71 (61x88x18 mm)

Environmental

• Operating temperature: 32 to 104°F (0 to 40°C).
• Storage temperature: -4 to 140°F (-20 to 60°C).
• Operating and storage relative humidity: 20 to 90% non-condensing RH.

Max Distance

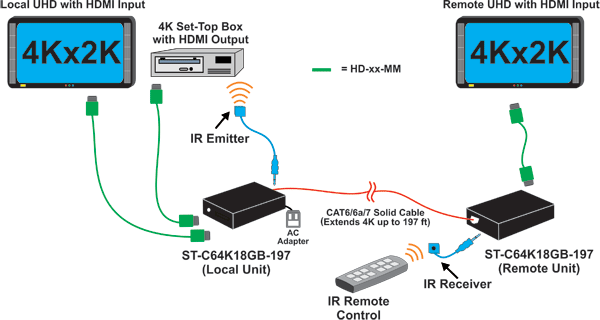

• Extend a 4K@60Hz signal up to 197 feet (60 meters) with solid CAT6/6a/7 cable and 100 feet (30 meters) with solid CAT5e cable.
• Extend a 4K@30Hz and 1080p@60Hz signal up to 230 feet (70 meters) with solid CAT6/6a/7 cable and 164 feet (50 meters) with solid CAT5e cable.
