Low-Cost Mini HDMI Extender via Two CAT5e/6/6a

NTI Part #: ST-C5HD-MINI-ULC-Group

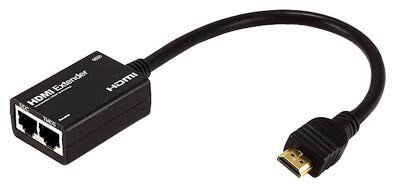

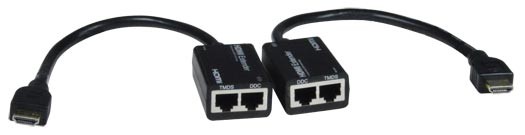

XTENDEX® ST-C5HD-MINI-ULC (Local and Remote Units)

Additional Images/Videos

NTI Part #: ST-C5HD-MINI-ULC-Group

The XTENDEX® Mini HDMI Extender transmits digital video and audio signals up to 150 feet using two CAT5e/6/6a cables. Each video extender consists of the local unit that connects to an HDMI sources and a remote unit that connects to an HDMI display. No power supply is necessary.

Also known as: HDMI extender, Media center extender, Set-top box extender, cat6 HDMI monitor extender, remote digital HDMI monitor, HDMI transmitter/receiver, high definition extender, extend 1080p video, HDMI balun.

Product Highlights

WUXGA/1080p Video Resolutions
No Power Supply
Compact Size

Talk to a live agent

ROHS Compliant Low-Cost Mini HDMI Extender via Two CAT5e/6/6a
Low-Cost Mini HDMI Extender via Two CAT5e/6/6aDigital Signage Product
CE Compliant Low-Cost Mini HDMI Extender via Two CAT5e/6/6a
FCC Compliant Low-Cost Mini HDMI Extender via Two CAT5e/6/6a

Scroll Down to Get Quote

Overview

The XTENDEX® Mini HDMI Extender transmits digital video and audio signals up to 150 feet using two CAT5e/6/6a cables. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Transmits an HDMI signal over two CAT5e/6/6a cables.
- Extend up to 100 feet with UTP CAT5e/6 cable.
- Extend up to 150 feet with UTP CAT6a cable.
HDMI features supported:
- 24-bit Deep color
- DTS® Digital, DTS-HD Master Audio™, Dolby TrueHD™, LPCM
- Bandwidth up to 165 MHz (1.65 Gbps).
HDCP compliant.
No power supply is necessary.
No software required.

Specifications

Local Unit

Compatible with a computer or HDTV video source with HDMI output.
One male HDMI connector for source connection.
One female RJ45 port for sending high definition video/audio signals.
One female RJ45 port for sending DDC signal.

Remote Unit

One male HDMI connector for display.
One female RJ45 port for receiving high definition video/audio signals.
One female RJ45 port for receiving DDC signal.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Supports embedded digital audio through HDMI compatible TVs or audio receivers.

Dimensions

WxDxH: 2.13x1.44x0.84 in (54x37x21 mm) with 8-inch (203-mm) male HDMI cable attached (local and remote unit).

Max Distance

150 feet (46 meters) over two CAT5e/6/6a cables.

Cables

Use CAT5e/6/6a UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
- Extend 1080p resolution up to 100 feet with UTP CAT5e/6 cable.
- Extend 1080p resolution up to 150 feet with UTP CAT6a cable.
Cables not included.

Environmental

Operating temperature: 32 to 158°F (0 to 70°C).
Storage temperature: 14 to 176°F (-10 to 80°C).
Operating and storage relative humidity: 5 to 85% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS

Warranty

Two years.

Application Drawings

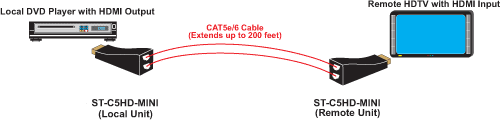

Mini HDMI Extender via Two CAT5e/6

How to extend an HDMI source up to 200 feet using CAT5e/6 cable.
