3.5mm Stereo Audio Extender via CAT5 up to 300 Feet

3.5mm Stereo Audio Extender via CAT5 up to 300 Feet

NTI Part #: ST-C5SA-LC-Group

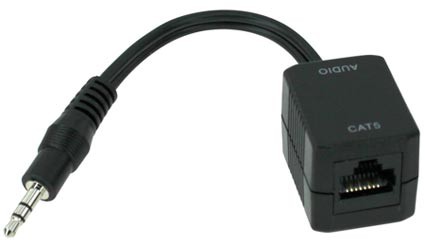

XTENDEX® ST-C5SA-LC *The transmitter looks the same as the receiver

Additional Images/Videos

NTI Part #: ST-C5SA-LC-Group

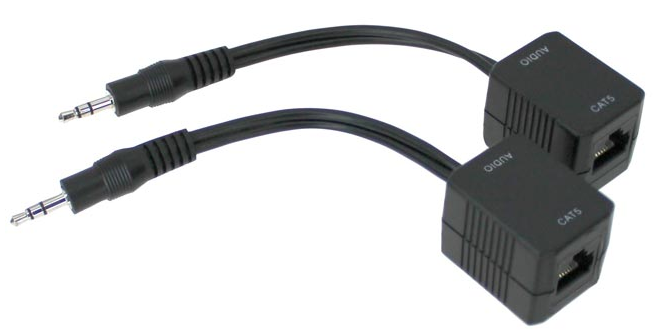

The XTENDEX® 3.5mm Stereo Audio Extender transmits analog stereo audio signals up to 300 feet using single CAT5e/6/7 cable. Each extender consists of two interchangeable units that can be connected to a 3.5mm stereo audio source and 3.5mm stereo audio speakers or receiver.

No power supply
Compact size

Talk to a live agent

Scroll Down to Get Quote

Overview

Description

Transmits an analog stereo audio signal over one CAT5/6/7 cable.
Transmitter and receiver baluns are interchangeable.
No power supply is necessary.
Supports Plug-n-Play specification.

Specifications

Local & Remote Unit

One male 3.5mm TRS stereo audio plug for connecting to a source or speakers/receiver.
One female RJ45 connector for sending/receiving analog stereo audio.
Bandwidth: 10Hz to 50kHz ±3dB

Dimensions

Local and remote unit WxDxH: 0.91x1.38x0.44 in (23x35x24 mm) with 4-inch (101-mm) male 3.5mm stereo audio cable attached.

Regulatory Approvals

TAA compliant.

Warranty

Two years.

Cables

Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

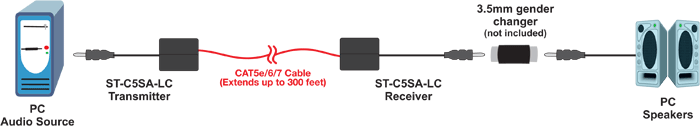

Application Drawings

3.5mm Stereo Audio Extender via CAT5 up to 300 Feet

Downloads

Data Sheet:

3.5mm Stereo Audio Extender via CAT5 up to 300 Feet 124 KB

(0)3.5mm Stereo Audio Extender via CAT5 up to 300 Feet

NTI Part #	Description	Qty
ST-C5SA-LC	3.5mm Stereo Audio Extender via CAT5 up to 300 Feet
