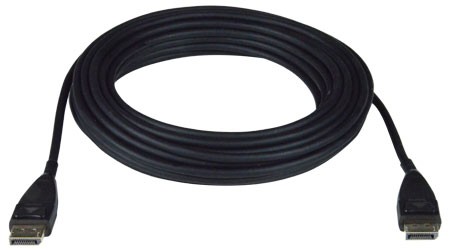

8K DisplayPort 1.4 Plenum Active Optical Cable

The XTENDEX® 8K DisplayPort Plenum Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort display up to 100 meters (328 feet) from a video source. Using optical fiber, the DP8K-FOCMP-xxM-MM provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

• High speed and long distance transmission by optical system up to 100 meters (328 feet).
  • Hybrid cable containing both fiber optic and copper cores.
• Supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
• No loss of signal – delivering crystal clear digital images instantly.
• No external power required.
• DisplayPort features supported:
  • DisplayPort 1.4
  • Up to 16-bit Color and 48-bit Deep Color
  • BT.2020, YCbCr 4:4:4, and YCbCr 4:2:2
  • High-bandwidth HBR3
    • Bandwidth up to 8.1Gbps per channel (32.4Gbps total)
  • DSC 1.2 display stream compression
  • FEC forward error correction
  • HDR
  • 32 audio channels.
• HDCP 2.2 compliant.
• Optical fibers immune to signal noise.
• Low RFI/EMI for sensitive applications.
• Supports Plug-n-Play specification.
• EDID learning for the support of any DisplayPort display device.
• Thin and ultra-lightweight construction.
• CMP-rated flame-retardant plenum PVC jacket.
• Ideal solution for many applications, including:
  • Digital Signage
  • Medical Imaging Equipment
  • Airplane On-board Video System
  • Home Theater
  • TV Broadcast Station
  • Conference Room Video Equipment
