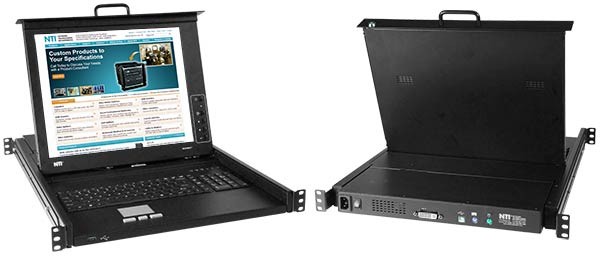

RACKMUX-D17-N (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-D17-Group

The RACKMUX® DVI USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer. It is available with a 1920x1200 17" LCD, 1280x1024 17" LCD or 1024x768 15" LCD.

Also known as: dvi kvm drawer, rack mount USB PS/2 keyboard drawer, rack mount kvm drawer, DVI console drawer, keyboard monitor touchpad mouse drawer, KVM drawers, keyboard LCD drawer, folding monitor.

Product Highlight

Single-Person Installation
Optional Hi-Res 1920x1200 17.1" LCD

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount DVI USB + PS/2 KVM Drawer, up to 1920x1200 Resolution
CE Compliant Rackmount DVI USB + PS/2 KVM Drawer, up to 1920x1200 Resolution

Scroll Down to Get Quote

Overview

The RACKMUX® DVI USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

Available with 17" Active Matrix LCD DVI flat panel monitor.
- Optional hi-res 1920x1200 17.1" monitor available
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
Compatible with DVI-enabled USB and PS/2 computers.
Torque-friction hinges-monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large padded wrist-rest.
Drawer locks into place when open to prevent it from sliding in and out of the rack.

Available with optional mounting bracket for two-post style telco rack.
Rugged steel construction with durable powder coat finish.
LCD auto-shutoff in closed position.
Internal cable arm provides proper cable management for sliding the drawer open and closed.
Equipped with On Screen Display (OSD).
Designed to be a one-person job when installing the drawer.
Front panel security lock.
Front panel USB port to connect an external USB device, such as a flash drive.
Available with optional 24VDC power.

Specifications

Host Interface

Compatible with PS/2, UNIX and USB-enabled computers.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
One female DVI-D, one female USB Type B, and two female 6-pin minDIN connectors.
Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.

Monitor

Forward-folding 17" (432 mm) Active Matrix LCD DVI flat panel monitor.
Resolution:
- RACKMUX-D17-N: 1280x1024
- RACKMUX-D17HR-N(-24V): 1920x1200
Tilt: up to 120°.
Frequency:
- RACKMUX-D17-N:
  - Horzontal: 31 to 80 KHz
  - Vertical: 55 to 76 Hz.
- RACKMUX-D17HR-N(-24V)
  - Horizontal: 30 to 80 KHz
  - Vertical: 56 to 75 KHz
OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Brightness:
- RACKMUX-D17-N: 300 nits
- RACKMUX-D17HR-N(-24V): 275 nits
Contrast Ratio:
- RACKMUX-D17-N: 500: 1
- RACKMUX-D17HR-N(-24V): 800: 1
Supports DDC1 and DDC2B protocols.

Devices

Keyboard available in: English (US).
- RACKMUX-D17-N, RACKMUX-D17HR-N(-24V): 100-key (US) with numeric keypad
Three button touchpad mouse.
Front panel USB 1.1 port to connect external USB devices.
- Female USB Type A connector.
- KVM drawer must be connected to a USB-enabled computer.

Cables

6.5 foot (2 meters) DVI-D male to male single link cable.
6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
6-foot (1.8-meter) power supply cable included.

Power

RACKMUX-D17-N, RACKMUX-D17HR-N
- 110 or 220 VAC at 50 or 60 Hz via IEC connector.
- Power Consumption: 30 W
- Maximum Inrush Current: 30A
RACKMUX-D17HR-N-24V
- 3-pin terminal block for 24V power source.
- Accepts 18~36VDC (24VDC nominal).
- For installation in a 24V Telecom environment.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Dimensions

WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
- Handle adds an additional 1.5" to the depth when monitor is in closed position.
Weight: 30.2 lbs. (14 kg)
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS

Warranty

Two years

Package Includes

KVM Drawer
2 keys for lock
IEC Power Cord, country-specific (excluded in 24V model)
6-ft USB Type A male to USB Type B male cable
6-ft PS/2 male to male mouse and keyboard cable
2-meter DVI-D male to male video cable
CD with manual and drawer installation manual
Single-person installation mounting kit

Application Drawings

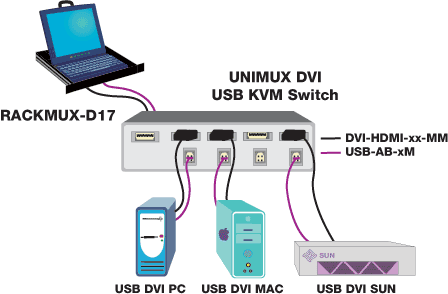

Rackmount DVI USB + PS/2 KVM Drawer

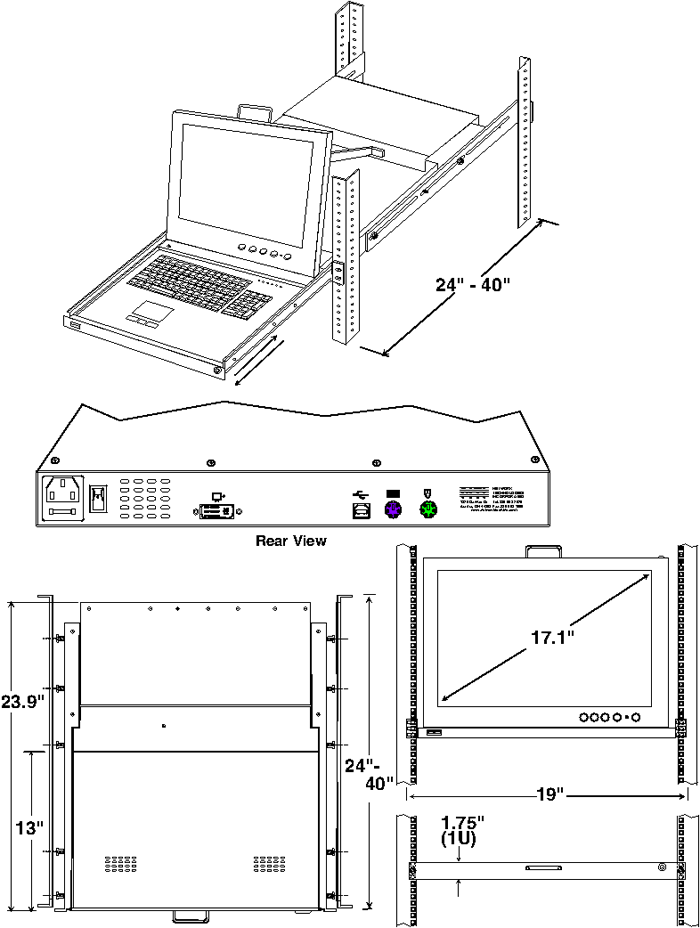

CAD Drawings

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
RACKMUX-D17HR-N

Keyboard Layouts

Rackmount KVM Drawer

RACKMUX-T15, RACKMUX-T15-G, RACKMUX-V15, RACKMUX-V17, RACKMUX-T15-CSx, RACKMUX-T15-G-CSx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V17-MP-PRIMUX, RACKMUX-V17-MP-xUNV, RACKMUX-V17-MP-2X8U, RACKMUX-V17-MP-nXmUHD, RACKMUX-D17
Rackmount KVM Drawer with Numeric Keypad

RACKMUX-T15-N, RACKMUX-T15-NG, RACKMUX-T15-N-CSx, RACKMUX-T15-NG-CSx, RACKMUX-T15-N-Sx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V15-N-xUNV, RACKMUX-V17-N-xUNV, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-nXmUHD, RACKMUX-V17-N-nXmUHD, RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-D17-N, RACKMUX-D15/17-N-xDVIHD

Downloads

Video:

RACKMUX NTI KVM Drawers: Single-Person Installation
Excluding 20" models

Data Sheet:

Rackmount DVI USB + PS/2 KVM Drawer 188 KB

User Manual:

(0)USB + PS/2 Keyboard Mouse with DVI Monitor

NTI Part #	Description	Screen Size	Video Resolution
RACKMUX-D17	DVI LCD, USB & PS/2 Keyboard Mouse	17"	1280x1024
RACKMUX-D17-N	DVI LCD, USB & PS/2 Keyboard Mouse, Numeric pad	17"	1280x1024
RACKMUX-D17HR-N	DVI LCD, USB & PS/2 Keyboard Mouse, Numeric pad	17.1"	1920x1200
RACKMUX-D17HR-N-24V	DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad, 24V Power	17.1"	1920x1200
