Video/Audio Splitter/Extenders

Video/Audio Splitter/Extenders

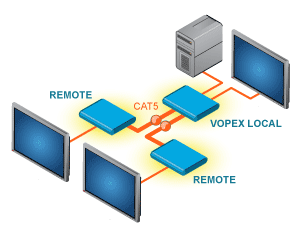

Extend multiple displays up to 600 feet (183 meters) from a video source - broadcast the same image on all displays. Drive multiple monitors remotely via CAT5 cable.
Also known as: Video/Audio Splitter/Extenders, Splitter/Extender via CAT5, HD Component Video Splitter, video distribution amplifier, point-to-multipoint extenders, same image multiple monitors, Drive multiple monitors remotely via CAT5 cable, Media distribution CAT5..
HDMI Point to Multi-Point Video Extenders
  • 4K 60Hz 4:4:4 HDMI Splitter/Extender via CAT5e/6

    VOPEX-C64K18GB-4 Local Unit (Front & Back) and Four Included Remote Units (Front & Back)

    The VOPEX® 4K HDMI Splitter/Extender simultaneously distributes uncompressed Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video, multi-channel audio, and IR from one video source to up to four displays and speakers, each located up to 100 feet away via CATx cable. The VOPEX-C64K18GB-4 system consists of two components: the 4K HDMI HDBase-T broadcast unit, which connects to the HDMI source and also supplies video to a local display; and a receiver (included) for each remote 4K HDMI display. The units are interconnected by CAT5e/6/6a/7 cable.

  • Low-Cost HDMI Splitter/Extender via CAT5e/6: 4-Port

    VOPEX-C5HD-4LC Local Unit (Front & Back) and Four Remote Units (Included)

    The VOPEX® Low-Cost HDMI Splitter/Extender simultaneously distributes 1080p HDMI video and multi-channel audio from one video source to up to four displays and speakers, each located up to 131 feet away via CATx cable. The VOPEX-C5HD-4LC system consists of an HDMI broadcast unit, which connects to the HDMI source and also supplies video to a local display; and four included receivers for each remote HDMI display. The units are interconnected by CAT5e/6/6a/7 cable.

  • Low-Cost HDMI Over Gigabit IP Network Range Extender

    ST-IPHD-LC

    The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 330 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable. Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display.

  • Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (POE)

    XTENDEX® ST-IPHD-POELC (Local & Remote Unit)

    The XTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 393 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6/7 cable. Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx cable or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • HDMI Over Gigabit IP Extender with Power over Ethernet (POE): Extend up to 333 Feet

    ST-IPHD-R-2GOPOE (Front & Back)

    The XTENDEX® HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet away over a 1000BASE-T Gigabit Network connected with CAT5e/6/7 cable. Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx cable or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • HDMI Splitter/Extender via Singlemode Fiber Optic Cable up to 12.4 Miles

    FIBER-1X4-SSSC Optical Splitter and ST-FOHD-SC-ULC Remote & Local Unit

    The VOPEX® HDMI Splitter/Extender simultaneously distributes high resolution HDMI video to up to four displays up to 12.4 miles (20 km) from an HDMI video source using a single-strand SC singlemode fiber optic cable. The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host HDMI video source; and a receiver for each remote HDMI display. The units are interconnected by a simplex 9-micron singlemode SC fiber optic cable.

DVI Point to Multi-Point Video Extenders
  • DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet

    FIBER-1X4-SMSC Optical Splitter and ST-1FODVI-R-SC Remote Unit (Front & Back)

    The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution DVI video to up to four displays up to 3,280 feet (1,000 meters) from a DVI computer using single-strand SC multimode fiber optic cable. The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by a simplex 50-micron multimode SC fiber optic cable.

VGA Point to Multi-Point Video Extenders
  • VGA Video/Audio Splitter/Extender via CAT5: 4-, 8-, and 16-Port

    VOPEX-C5VA-4C Local Unit (Front & Back) and ST-C5VA-600 Remote Unit

    The VOPEX® VGA Video Splitter/Extender simultaneously broadcasts high-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet (183 meters) away using CAT5/5e/6 cable. Optional audio functionality using self-powered stereo speakers enhances presentations. It is available with optional rackmount enclosure.

  • VGA Video/Audio Splitter/Extender via CAT5 to 1,000 Feet: 4- and 8-Port

    VOPEX-C5VA-4C1000 Local Unit (Front & Back) and ST-C5V-R-1000SP Remote Unit

    The VOPEX®VGA Video Splitter/Extender simultaneously broadcasts high-resolution VGA video from one computer to 4 or 8 remote monitors located up to 1,000 feet away using CAT5/5e/6 cable. Audio can be broadcasted to self-powered stereo speakers at the local unit and each remote location when using NTI's remote units with audio option.

  • Industrial VGA Splitter/Extender via CAT5 with M12 Connectors

    VOPEX-M12V-4 Local Unit (Front & Back)

    The VOPEX® Industrial VGA Video Splitter/Extender simultaneously broadcasts high-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet (183 meters) away using CAT5/5e/6 cable with M12 connectors. It is available with optional audio.
