Enables remote access to a DVI USB/PS2 computer or server over the Internet in a zero-U unit.

DVI USB/PS2 KVM over IP – Remote Server Management

NTI Part #: INTERMUX-KVMDUPIP-Group

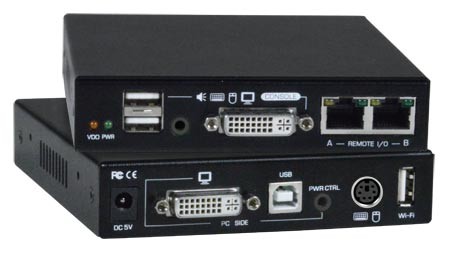

INTERMUX-KVMDUPIP (Front & Back)
INTERMUX-KVMDUPIP (Front & Back)
NTI Part #: INTERMUX-KVMDUPIP-Group
The INTERMUX™ DVI USB KVM on IP™ device is used to control one or many computers locally at the server site or remotely via the Internet using a standard browser. Securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure and can be used in conjunction with a KVM switch for multipleserver access.

Talk to a live agent

  • ROHS Compliant DVI USB/PS2 KVM over IP – Remote Server Management
  • CE Compliant DVI USB/PS2 KVM over IP – Remote Server Management
Scroll Down to Get Quote

Overview

The INTERMUX™ DVI USB KVM on IP™ device is used to control one or many computers locally at the server site or remotely via the Internet using a standard browser. Securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure and can be used in conjunction with a KVM switch for multipleserver access.

  • Supports digital DVI resolutions to 2048x1152 (QWXGA), and analog VGA resolutions to 1920x1200 (WUXGA).
  • Compatible with USB or PS/2 computers.
  • Remote KVM access over IP network or over a modem link.
    • Access systems during boot up, BIOS, and frozen OS conditions.
    • Simultaneous access for multiple users.
    • Manage servers around the world.
  • Provides local KVM access.
  • Simultaneous access from multiple users, no user limitation.
  • Cost effective Zero-U design. KVM control "at the rack" or remotely over IP.
  • Supports virtual media – deliver patches/upgrades as if on-site; remote and local file transfer.
  • Built-in 2-port Ethernet hub.
  • Use the included Java-based software to manage an unlimited number of INTERMUX-KVMDUPIP devices.
  • Windows, Java, and Android viewers for cross-platform compatibility.
  • Supports secure access via 1024-bit PKI authentication, 256-bit SSL data encryption, LDAP, RADIUS, and Active Directory authentication.
  • Optimize the video compression according to bandwidth availability.
  • Connect to a wireless network using a WiFi dongle (not included).

Specifications

  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Connectors
  • Host Connection
    • One female DVI-I connector
    • One female USB Type B connector
    • One female 6-pin minDIN connector
  • Local Access
    • One female DVI-I connector
    • Two female USB Type A connectors for keyboard and mouse.
  • Two female RJ45 Ethernet jacks.
    • 10/100 Base-T Ethernet interface with internal switch.
  • One female USB Type A for WiFi dongle.
    • Compatible with EDIMAX EW-7811Un (not included).
  • One 3.5mm jack for RS232 power control.
    • Baud rate fixed at 9600.
    • Contact an NTI product consultant for information on connecting a compatible PDU.
Video
  • Supports digital/analog DVI and analog VGA.
  • A VGA monitor/computer can be connected by using a DVI-A to VGA
  • adapter (included).
  • Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect an HDMI display/computer (not included).
  • Video resolutions:
    • DVI video: Supports resolutions up to 2048x1152 @60Hz.
    • VGA video: Supports resolutions up to 1920x1200 @60Hz.
Protocols
  • HTTP/HTTPS, SNMP, TCP/IP, DHCP, SSL, LDAP, IPV4, RADIUS, DDNS, NTP, PKI
  • Supports secure access via 1024-bit PKI authentication, 256-bit SSL data encryption, LDAP, RADIUS, and Active Directory authentication.
Power
  • Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
  • Output: 5VDC, 3A
  • Power consumption: 6.25W
Dimensions
  • WxDxH (in): 4.72x5.63x1.04 (120x143x27 mm)
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 0 to 90% non-condensing RH.
Cables
  • Use DVI-DS-2M-MM DVI-D Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
  • Use DVI-IS-xx-MM DVI-I Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
  • Use DVI-HD-xM-MM DVI-D Male to HDMI-A Male Single Link Cable to connect to an HDMI source or display (not included).
  • Use VEXT-xx-MM VGA Male-to-Male Cable without Ferrites to connect to a VGA source or display up to 25 feet (not included).
  • Use VEXT-F-xx-MM VGA Male-to-Male Cable with Ferrites to connect to a VGA source or display (not included).
  • Use DP-DVID-xx-MM cables to connect to a DisplayPort source up to 15 feet away (not included).
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Package Includes
  • One INTERMUX-KVMDUPIP
  • One power supply
  • One 6ft (1.8 meter) dual link DVI male to male cable
  • One 4ft (1.2 meter) USB Type A male to Type B male cable
  • One 4ft (1.2 meter) PS/2 1x2 splitter cable with male 6-pin miniDIN connectors.
  • Two passive VGA female to DVI male adapters
  • User manual

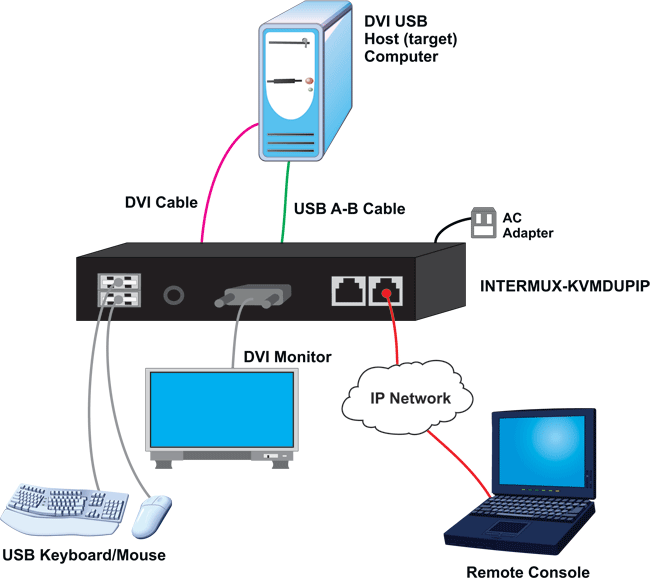

Application Drawings

  • DVI USB/PS2 KVM over IP – Remote Server Management
    DVI USB/PS2 KVM over IP – Remote Server Management

(0)DVI USB/PS2 KVM over IP – Remote Server Management

NTI Part # Description Qty
INTERMUX-KVMDUPIP DVI USB KVM over IP – Remote Server Management
