Low-Cost 4K 18Gbps HDMI Video Matrix Switch: 8x8

Low-Cost 4K 18Gbps HDMI Video Matrix Switch: 8x8

NTI Part #: SM-8X8-4K18GB-LC-Group

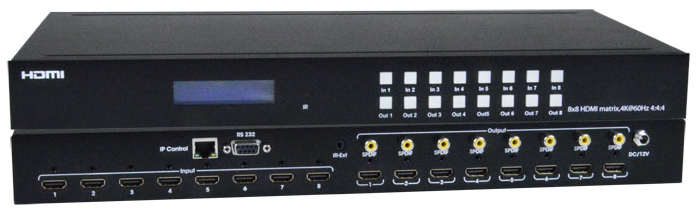

SM-8X8-4K18GB-LC (Front & Back)

Additional Images/Videos

NTI Part #: SM-8X8-4K18GB-LC-Group

The VEEMUX® Low-Cost 4K HDMI Matrix Switch routes digital 4Kx2K HDMI video and audio signals from up to eight HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to eight displays (monitors, 4K TV's, projectors, etc).

Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
HDMI 2.0, HDCP 2.2
IR, RS232, Ethernet control

Talk to a live agent

ROHS Compliant Low-Cost 4K 18Gbps HDMI Video Matrix Switch: 8x8
CE Compliant Low-Cost 4K 18Gbps HDMI Video Matrix Switch: 8x8
FCC Compliant Low-Cost 4K 18Gbps HDMI Video Matrix Switch: 8x8

Scroll Down to Get Quote

Overview

Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
Each input can be independently connected to any or all outputs.
HDCP 2.2 compliant.
HDMI features supported:
- HDMI 2.0
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
- YUV 4:4:4
- HDR
- 3D
- Bandwidth up to 600 Mhz (18 Gbps)
- Lip Sync
Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
- HDMI-embedded audio switching (four-channel stereo mixing)
- SPDIF digital audio out ports for each source.
Configurable built-in EDID table
Compact 1RU design
- Mounting kit included

Specifications

Inputs

Female HDMI input connectors
Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
Supports HDCP 2.2/1.4

Outputs

Female HDMI output connectors
RCA jacks for SPDIF digital audio.
HDMI-embedded audio switching (four-channel stereo mixing).
Supported resolutions
- 4Kx2K (4096x2160 and 3840x2160) @24Hz/30Hz/60Hz YUV 4:4:4
- 480p @60Hz, 576p@50Hz, 720p@60Hz, 1080p @24/50/60Hz
Supports HDCP 2.2/1.4
Video bandwidth: 600MHz (18 Gbps)

Power

Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (AC adapter included.)
Output: 12VDC, 3.0A
Power consumption: 19W

Environmental

Operating temperature: -4 to 140°F (-20 to 60°C).
Storage temperature: -40 to 158°F (-40 to 70°C.)

Dimensions

WxDxH (in): 17.32x8.66x1.75 (440x220x44 mm).

Cables

Use HD-xx-MM HDMI cables to connect an HDMI source or display.
- Supports cable lengths to 50 feet for 4Kx2K resolutions at 60Hz
Cables not included.

Regulatory Approvals

CE, FCC, RoHS

Warranty

Two years

Package Includes

One 4K HDMI Video Matrix Switch
One power adapter
One IR remote
One IR extension cable
Mounting kit
CD with software and user manual

Compatible NTI Products

Combine NTI's extenders, switches, splitters and cables for complex applications
- 4K HDMI Extender via One CATx (ST-C64K-300)
  - Each output on the switch must be set to 3840x2160 @ 30Hz.

Control Methods

Front Panel Interface

Standard control method
Configuration and control can be done using the front panel buttons.
Keypad allows selection of the input source to be routed to the desired outputs.

Ethernet Control

Standard control method.
Configuration can be done over the Internet via Web server.
Female RJ45 connector.
10/100 BaseT Ethernet interface.

RS232 Control

Standard control method
Configuration and control can be done through the serial port.
- Female DB9 connector.
Control the switch using the Control Program with Graphical User Interface (GUI control) via RS232. (Control software included.)

Infrared Remote Control

Standard control method
IR control of matrix switch:
- The matrix switch can be controlled locally with the included IR remote using the built-in IR receiver on the switch.
- Extend IR control up to 3.9 feet (1.2 meters) with IR extension cable (included).
  - One female 3.5mm port for IR extension.
