Control two dual-head Ultra-HD 4Kx2K 60Hz DisplayPort USB computers with one USB keyboard, USB mouse and two 4K monitors

2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub

NTI Part #: UNIMUX-DP4K-2DH-Group

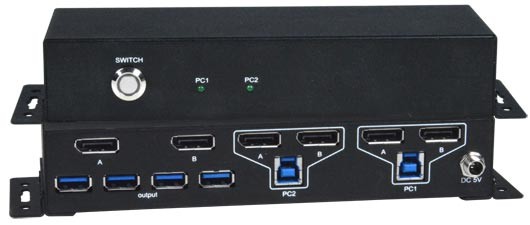

UNIMUX-DP4K-2DH (Front & Back)
UNIMUX-DP4K-2DH (Front & Back)
NTI Part #: UNIMUX-DP4K-2DH-Group
The UNIMUX™ Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub allows a user to control two dual-head Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and two 4K DisplayPort monitors.
  • Dual Head
  • Resolutions to Ultra-HD 4Kx2K 60Hz 4:4:4
  • 21.6 Gbps
  • DisplayPort 1.2, USB 3.2

Talk to a live agent

  • ROHS Compliant 2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
  • CE Compliant 2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
  • FCC Compliant 2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
Scroll Down to Get Quote

Overview

The UNIMUX™ Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub allows a user to control two dual-head Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and two 4K DisplayPort monitors.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.
  • DisplayPort features supported:
    • DisplayPort 1.2
    • Dolby True HD, DTS HD Master, and stereo audio.
    • YCbCr 4:4:4, YCbCr 4:2:2, and RGB.
    • Up to 12-bit Color
    • Bandwidth up to 21.6 Gbps
  • HDCP compliant.
  • Compatible with dual-head USB computers (PC and MAC).
  • Control the switch through the front panel button or keyboard commands.
    • Keyboard commands available on Windows computers only.
  • Four transparent USB 3.2 ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    • Backwards compatible with USB 2.0/1.1.
  • EDID pass-through supported.
  • Quick and easy plug-and-play installation – no drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.

Note: When switching between computers, the screen layout will not be as you left it – all open windows will be pushed to the top left corner of the main display.

Specifications

Hosts
  • Four female DisplayPort connectors.
  • Two Female USB 3.2 Type B connectors.
  • Supports dual-head USB-enabled computers (PC and MAC) with DisplayPort video.
  • Multiplatform support: Windows 7/8/8.1/10, Mac OS 9/10.
  • Compliant with DisplayPort 1.2 and HDCP standards.
Monitor
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.
  • Two female DisplayPort connectors.
  • Compliant with DisplayPort 1.2 and HDCP standards.
Devices
  • Four transparent USB 3.2 ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    • Backwards compatible with USB 2.0/1.1.
Power
  • Input: 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 5VDC, 4A
  • Power consumption: 6.5W
  • Each USB output port supports full 900mA current.
Dimensions
  • WxDxH: 8.27x2.36x1.4 in (210x60x35.6 mm)
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Use DP-xx-MM cable to connect a DisplayPort source or display up to 15 feet.
  • Use DP8K-FO-xxM-MMLC or DP4K21GB-FO-xxM-MM to connect a DisplayPort source or display up to 100 meters.
  • Use DP-HD-xx-MM to connect an HDMI display up to 15 feet.
    • Not compatible with MAC.
  • Use DP-DVI-xx-MM to connect a DVI display up to 15 feet.
    • Not compatible with MAC.
  • Use DP-VGA-xx-MM to connect a VGA display up to 15 feet.
    • Not compatible with MAC.
  • Use USB3-AB-xx-K to connect a USB 3.0 computer to the switch.
  • Cables not included.
Environmental
  • Operating temperature: 32 to 158°F (0 to 70°C).
Regulatory Approval
  • CE, FCC, RoHS
  • TAA compliant
Warranty
  • Two years

Control Methods

Front Panel Interface
  • Press the button on the front panel interface to switch between ports.
  • LEDs indicate currently selected port.
Keyboard
  • Use the keyboard commands the switch to select ports.
    • Double press "Scroll Lock" or "Num Lock" to switch between ports.
    • Supported on Windows computers only.

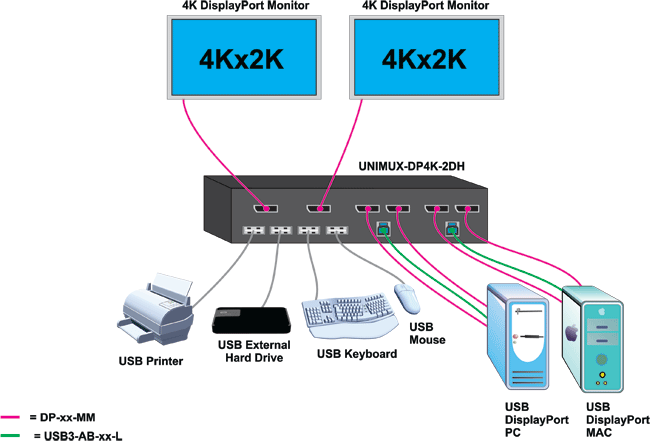

Application Drawings

  • 2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
    2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub
    How to control two dual-head Ultra-HD 4Kx2K 60Hz DisplayPort USB computers with one USB keyboard, USB mouse and two 4K monitors

(0)2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub

NTI Part # Number of Ports Qty
UNIMUX-DP4K-2DH 2
