The XTENDEX® Dual Monitor 4K 10.2Gbps HDMI USB KVM Over IP Extender provides remote KVM (USB keyboard, USB mouse, and two 4Kx2K 30Hz HDMI monitors) access to a dual-head USB computer up to 492 feet (150 meters) via two CAT6/6a/7 cables.

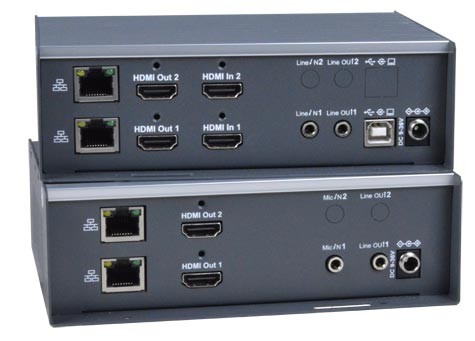

Each KVM extender consists of the ST-IPUSB4K-L-VWDH local unit that connects to a dual-head computer and also supplies video to two local monitors, and the ST-IPUSB4K-R-VWDH remote unit that connects to two HDMI monitors, 3.5mm stereo audio speakers and microphone, and up to four USB devices (keyboard, mouse, flash drive, HDD, or touchscreen display).

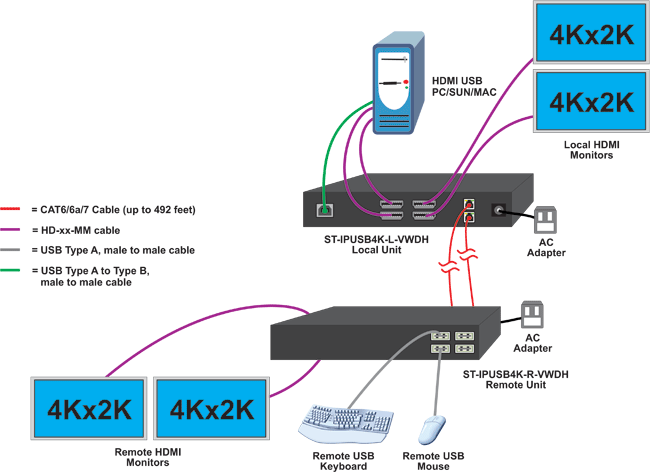

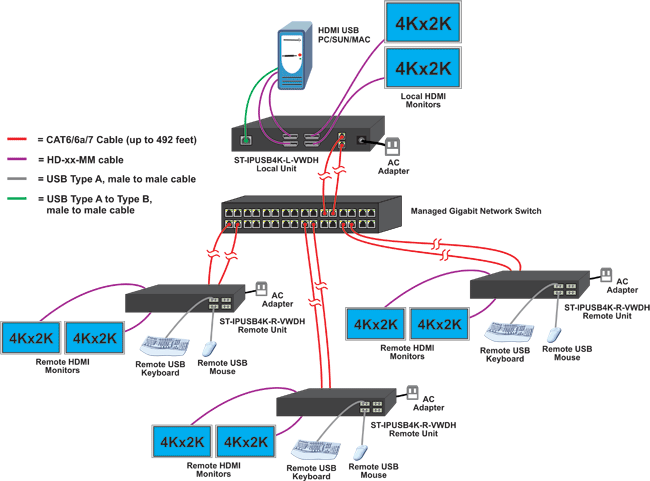

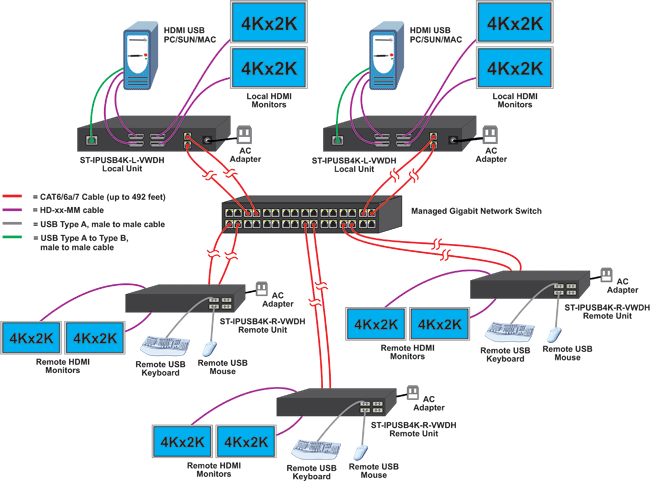

The local and remote units can be connected together for a Point-to-Point connection via CATx cable, or a Point-to-Many or Many-to-Many connection via a managed Gigabit network switch.
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- Extend 4Kx2K up to 492 feet in a Point-to-Point connection.
- Extend 4Kx2K up to 984 feet in a Point-to-Point, Point-to-Many, or Many-to-Many connection via a managed Gigabit network switch.
- The max length between most switches and the local/remote unit is 492 feet.
- The switch itself will determine the maximum distance.
- HDMI features supported:
- HDMI 1.4
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, LPCM 7.1, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 340 MHz (10.2 Gbps)
- Lip Sync
- HDCP 1.4 compliant.
- USB ports for keyboard, mouse, flash drive, HDD or touchscreen display.
- Two USB 2.0 and two USB 1.1 connectors.
- Keyboard and mouse are hot-pluggable.

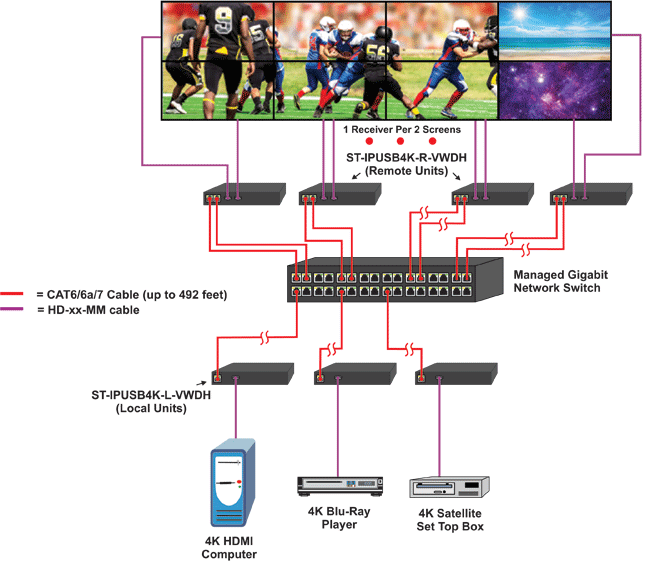

- Supports video wall installations from 1x2 to 4x4 screens.
- Displays can be rotated 180 and 270°.
- Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for managed network switch.)
- Support for Point-to-Many or Many-to-Many connections requires a managed Gigabit network switch with IGMP support and Jumbo frame support.
- Manage transmitter/receiver connections and video wall configuration with web interface or network switch that supports VLAN.
- Each VLAN acts as a separate HDMI Over IP Channel on the network.
- When using multiple remote units, there are two USB control modes - Exclusive Mode and Sharing Mode.
- USB Exclusive Mode: Only one remote unit can have USB control over the source computer at any time.
- USB Sharing Mode: Multiple remote units share the control of the source computer.
- Up to 5 USB devices will be recognized by the computer.
- Customizable EDID table on local unit.
- Supports the DDC2B protocol.
- Easily expandable – add receivers as you add control stations.
- Integrated mounting brackets for easy surface/wall mounting.
