LCD Monitors

NTI Part #: CM-RK17-Group

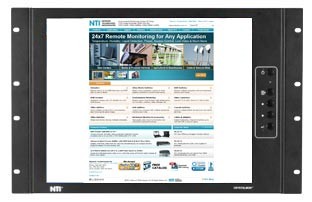

The CRYSTALMON™ 17" TFT/LCD Monitors provide the industrial or commercial user with superior picture quality and a variety of mounting options such as rack, wall, and desktop. Crisp and clear 1280x1024 video resolution is supported.

Also known as: rackmount lcd monitor, rack mount LCD monitor, rackmount tft monitor, fixed rackmount lcd monitor, tft rackmount lcd monitor, flat panel monitor, rack mount monitor, active matrix monitor.

Talk to a live agent

Designed and Manufactured in the U.S.A.
CE Compliant LCD Monitors
FCC Compliant LCD Monitors

Scroll Down to Get Quote

Overview

The CRYSTALMON™ TFT/LCD Monitors provide the industrial or commercial user with superior picture quality and a variety of mounting options such as rack, wall, and tabletop. They support true plug-and-play functionality and do not require any additional video drivers or interface adapters.

Available with an industrial 17" (432 mm) TFT/LCD flat panel monitor.
Equipped with On Screen Display (OSD).
Crisp and clear 1280x1024 video resolution.
Tabletop (CM-DT17)
- Adjust height, tilt and rotation of monitor for best viewing position.

Wall / Arm Mount (CM-WL17)
- Keyholes for mounting to a wall.
- Compliant to VESA 75 and 100 mm (3 and 3.9 in) mounting hole patterns.
- Compatible with NTI's LCD arms.
Rack Mount (CM-RK17)
- Designed to fit in a standard 19" (483 mm) rack/cabinet.
- Space-saving. Extra rackmounting space available behind the monitor.
- 7RU (12.25" (311 mm)) high.
- Always visible.

Specifications

17" (432 mm) LCD

Display Size: 17" (432 mm)
Panel Type: TFT Active
Mounting options: Rack mount, wall mount, desktop
Resolution Capabilities: VGA to SXGA
Max Resolution: 1280x1024
Pixel Pitch: 0.264 (H) x 0.264 (V)
Viewing Angle
- Horizontal: 160°
- Vertical: 150°
Contrast Ratio: 350:1
Brightness: 300 cd/m2
Video Input
- Analog 0.7V p-p, NTSC/PAL
- VGA video via female 15-pin HD connector.
- DVI video via female DVI-D Single Link connector.
Sync Composite, H/V Separate (TTL)
Life of Light Source: 40,000 hrs
Colors Supported: 16.7 million
Response Time: 16 ms typical (Tr+Tf)

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Cables

Includes 6-foot (1.8-meter) VGA and 6.5 foot (2 meters) DVI video cable.

Regulatory Approvals

CE, FCC

Power

AC input: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
Consumption: 35 W

MTBF

36,927 hrs

Dimensions WxDxH (in)

Rack Mount: 19x2.8x12.25
Wall Mount and Desktop: 16x2.8x12.8

Warranty

Two years

Downloads

Data Sheet:

LCD Monitors 145 KB

User Manual:

CRYSTALMON™ TFT/LCD Monitors - Installation and Operation Manual 360 KB

(0)Industrial LCD Monitor Models

NTI Part #	Description	Screen Size	Dimensions WxDxH (in.)	Qty
CM-RK17	Rack Mount	17"	19x2.8x12.25
