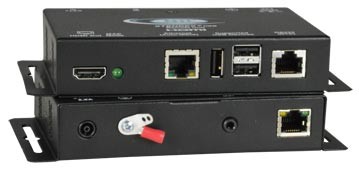

HDMI USB KVM Extender over HDBaseT

NTI Part #: ST-C6USBH-HDBT-Group
The XTENDEX® HDMI USB KVM Extender over HDBaseT provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 328 feet away over a single CAT5e/6/7 cable using HDBaseT technology.
Also known as: HDBaseT extender, HDMI USB KVM extender, extend keyboard monitor mouse, high definition 1080p IR extender, HDMI IR RS232 transmitter/receiver, remote HDMI USB touch screen monitor, HDTV video USB keyboard mouse Ethernet balun
Product Highlights
  • Extend 1080p video, USB, IR and RS232 to 328 ft via one CATx cable.
  • USB connector for USB touch screen monitor, CAC card reader, or interactive whiteboard.
  • Optional Ethernet port for network device.
  • Only one power supply required.

Talk to a live agent

  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant HDMI USB KVM Extender over HDBaseT
  • HDMI USB KVM Extender over HDBaseTDigital Signage Product
  • CE Compliant HDMI USB KVM Extender over HDBaseT
Scroll Down to Get Quote

Overview

The XTENDEX® HDMI USB KVM Extender over HDBaseT provides remote KVM (USB keyboard, USB mouse and HDMI monitor) access to a USB computer up to 328 feet away over a single CAT5e/6/7 cable using HDBaseT technology. Each video extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6/7 cable.
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Only one power supply is necessary to power both the local and remote units.
  • HDMI features supported:
    • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 154 MHz (3.76 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • USB ports for keyboard and mouse.
    • Keyboard and mouse are hot-pluggable.
    • Keep-alive keyboard/mouse emulation for flawless operation.
  • Features an additional USB port on the remote unit for a touch screen monitor, interactive whiteboard, or CAC card reader.
  • Bi-directional RS232 interface.
  • Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
  • Integrated mounting brackets for easy surface/wall mounting.
  • High quality, rugged steel construction with durable powder coat finish.

Specifications

Local Unit
  • Compatible with a USB computer (PC, SUN, MAC) or HDTV video source with HDMI output.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female HDMI connector.
  • One female USB Type B connector.
  • IR extension support: one female 3.5 mm port for IR emitter (included).
  • RS232 support – one female RJ45 port.
  • Optional female RJ45 100BaseT Ethernet port for connecting standard network device such as a 100Base-T router or hub.
  • One female RJ45 port for sending/receiving high definition video, audio, IR, USB, RS232 and DDC signals.
Dimensions
  • WxDxH (in): 4.96x3.03x1.06 (126x77x27 mm).
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
MTBF
  • ST-C6USBH-HDBT: 227,958 hours
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA complaint
Warranty
  • Two years
Remote Unit
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • One female HDMI connector.
  • IR extension support: one female 3.5 mm port for IR receiver (included).
  • Two female USB Type A connectors.
    • Compatible with most USB keyboards and mice, including Logitech M570 wireless mouse and Logitech K400 wireless keyboard.
  • Additional female USB Type A connector for a USB 2.0 (low/full speed) device - USB touch screen monitor, CAC card reader, interactive whiteboard, or barcode scanner.
    • USB maximum data rate: 12 Mbps.
    • Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, ELO 3202L, Dell S2240T, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40 and HP Compaq.
    • Supported interactive whiteboards: SMART Board™ SB640
    • Supported card readers: Athena, Cherry, Gemalto, Generic USB, and Dell smart card/keyboard combo.
  • RS232 support – one female RJ45 port.
  • Optional female RJ45 100BaseT Ethernet port for connecting standard network device such as a 100Base-T router or hub.
  • One female RJ45 port for sending/receiving high definition video, audio, IR, USB, RS232 and DDC signals.
Max Distance
  • 328 feet (100 meters) over CAT5e/6/7 cable.

Application Drawings

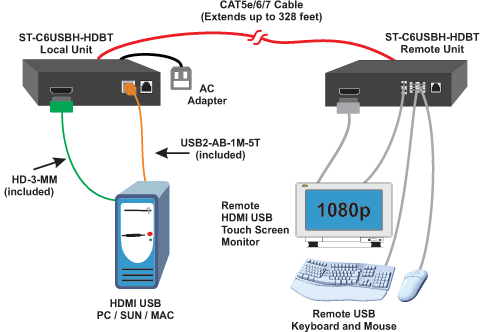

  • How to extend HD1080p, Multi-channel Audio, USB keyboard/mouse, IR, RS232 and optional Ethernet up to 328 feet over HDBase-T technology
