Extend one USB device up to 197 feet

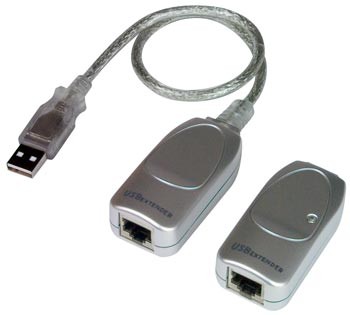

XTENDEX® USB-C5-LC (Remote & Local Unit)
XTENDEX® USB-C5-LC (Remote & Local Unit)

USB Extender via CAT5: Extend to 197 Feet

NTI Part #: USB-C5-LC-Group
The XTENDEX® USB Extender extends one USB device up to 150 feet using CAT5/5e/6 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5/5e/6 cable.
Also known as: USB extender, USB CAT5 UTP cable extension, USB booster, USB peripheral extender, USB active extension cable, extend USB device 197 feet via CAT5 network cable, USB over CAT5, USB balun, USB range extender.
  • No drivers required.
  • Available with optional power supply

Talk to a live agent

  • ROHS Compliant USB Extender via CAT5: Extend to 197 Feet
  • CE Compliant USB Extender via CAT5: Extend to 197 Feet
Scroll Down to Get Quote

Overview

The XTENDEX® USB Extender extends one USB device up to 197 feet using CAT5e/6/6a/7 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CATx cable.

  • Extend a self-powered or bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.) over CAT5e/6/6a/7 cable.
    • Extend a USB 1.1 device (keyboard, mouse, etc) up to 197 feet (60 meters).
    • Extend a USB 2.0/3.0 device (with USB 1.1 compatibility) up to 100 feet (30 meters).
  • Transparent data extension.
  • Compatible with USB computers (PC, SUN, MAC).
  • Compliant with USB 1.1 (low/full speed) specifications.
  • Supports Plug-n-Play specification.
  • No drivers required.
  • Available with optional power supply

Specifications

Local Unit
  • One male USB Type A connector on attached 1.23-foot (375-mm) cable.
  • Supports a USB computer (PC, SUN, MAC).
  • Multiplatform support: Windows 7/10, Windows Server 2012/2016/2019/2022, Solaris, Linux, and MAC OS 10/11
Remote Unit
  • One female USB Type A connector.
  • Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.
Power
  • USB-C5-LC:
    • Local unit: powered from attached computer.
    • Remote unit: powered from local unit.
      • USB port supports up to 70 mA current.
  • USB-C5-LCPA:
    • Local unit: powered by CATx cable from remote unit.
    • Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country specific 5VDC, 3A AC adapter included.)
      • USB port supports full 500mA current.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -40 to 185°F (-40 to 85°C).
Dimensions
  • Local and remote unit WxDxH: 1.23x2.46x0.84 in (31x63x21 mm)
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Max Distance
  • USB 1.1 device (keyboard, mouse, etc): 197 feet (60 meters) over CAT5e/6/6a/7 cable.
  • USB 2.0/3.0 device (with USB 1.1 compatibility): 100 feet (30 meters) over CAT5e/6/6a/7 cable.
Warranty
  • Two years
Cables
  • Existing device cable with male Type A connector required.
  • Use CAT5e/6/6a/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
    • Extend a USB 1.1 device (keyboard, mouse, etc) up to 197 feet (60 meters).
    • Extend a USB 2.0/3.0 device (with USB 1.1 compatibility) up to 100 feet (30 meters).

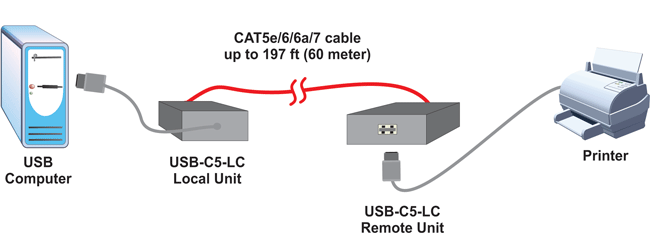

Application Drawings

  • USB Extender via CAT5 up to 150 Feet (46 meters)
    USB Extender via CAT5 up to 150 Feet (46 meters)

Application Notes

  • Extend a PS/2 Keyboard, PS/2 Mouse, VGA Monitor and USB Device
    Loading image...
    Use an XTENDEX KVM extender, ST-C5KVM-600, to extend the keyboard, monitor and mouse up to 600 feet, and an XTENDEX ST-C5-LC to extend the self-powered USB device up to 100 feet using CAT5 cable.

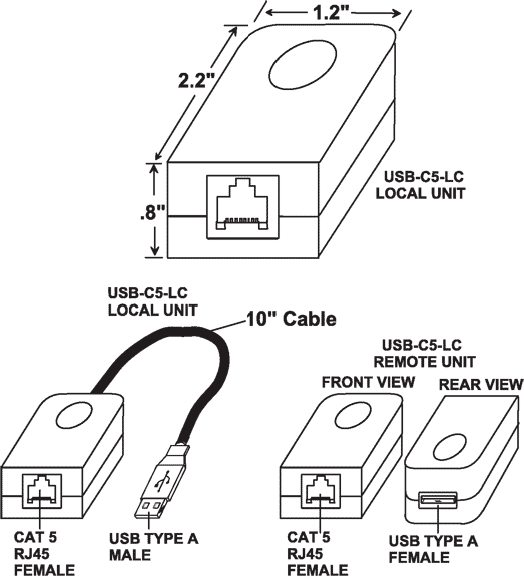

CAD Drawings

  • USB Extender via CAT5 (USB-C5-LC)
    Loading image...

Testimonials

  • "I just wanted to thank you for all of the help you gave me in ordering our USB-C5-LC extender and 150 feet of CAT5e cable. I really don't believe I have ever received such courteous, concern and friendly help in ordering anything. I will sing your praises to everyone I meet.

    Just so you know, I have moved our computer to the back of the auditorium and have run 150 feet of CAT5e cable to the pulpit, and the mouse works great!! Thank you!! You have a great product and no doubt a great company!"

    Bedford Church of Christ
    Bedford, TX

  • "Today I received a package from NTI Network Technologies Inc and I'm stunned at the amazing customer experience I found when I opened the box. They sent a personally signed thank you card. WOW!!! This is how you do customer service!! This is how you differentiate yourself from the competition.

    I love this so much... GREAT JOB NTI""

    HC Miller
    Green Bay WI

  • "I installed the USB-C5-LC USB Extenders in our Gift Shop. They work fantastic! I'd like to order another one for the other touch screen. I had to plug in the power supply for the USB Extenders to make it work. That's all it took! Just a little more power was all the touch screen needed."

    Indian Pueblo Cultural Center, Inc.
    Albuquerque, NM

  • ""I would like to thank your sales associate, Tammy Kuhn, for being incredibly helpful and for the amount of information that she has shared.

    Tammy has helped me close sales on the RACKMUX® KVM drawers and XTENDEX™ CAT5 extenders. NTI's cable prices and selection is also better than almost any other company I have worked with.

    I have told others about NTIs products and pricing and will continue to do so."

    Re:sources
    Cleveland, OH

(0)USB Extenders

NTI Part # Description Qty
USB-C5-LC 1-Port USB Extender
USB-C5-LCPA 1-Port USB Extender, Powered
