E-CMD-P
E-CMD-P

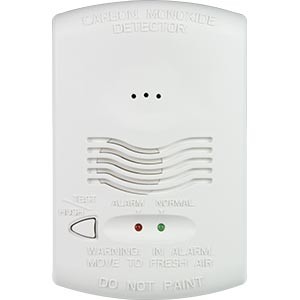

Carbon Monoxide Detector, Powered

NTI Part #: E-CMD-P
Carbon Monoxide Detector. Continuous air monitoring. Pre-set alarm points at: 70 ppm after 60-240 min, 150 ppm after 10-50 min, 400 ppm after 4-15 min.

Talk to a live agent

Overview

  • Continuous air monitoring.
  • Pre-set alarm points alert at:
    • 70 ppm after 60 to 240 minutes
    • 150 ppm after 10 to 50 minutes
    • 400 ppm after 4 to 15 minutes
  • Flush or surface mount.
  • Test functionality of electrochemical CO sensing cell.
  • Connect to RJ45 or digital input sensor ports.
  • Screw terminal
    • To connect to the digital inputs use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
  • LED indicators for operation status and system test.
  • Includes 12V/1A power supply.
  • Compatible with E-MINI-LXO, E-MICRO, and E-1W.
    • E-1W only: compatible with the E-DI2-1W Digital Input Expander.
  • Regulatory approvals: UL
