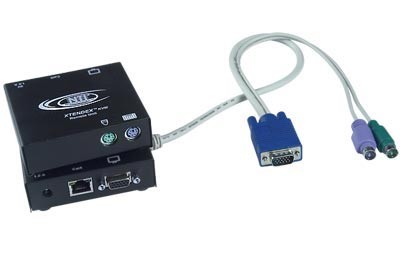

XTENDEX® ST-C5KVM-600 (Remote and Local Unit)
XTENDEX® ST-C5KVM-600 (Remote and Local Unit)

Additional Images/Videos

PS/2 KVM Extender via CAT5: Extend to 600 Feet (183 meters)

NTI Part #: ST-C5KVM-600-Group
The XTENDEX® PS/2 KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC up to 600 feet (183 meters) using CAT5/5e/6 UTP cable. It is available with optional stereo audio or RS232. Supports resolutions to 1920x1440.
Also known as: KVM extender, cat5 kvm extension, keyboard monitor mouse booster extend, remote kvm cat 5, kvm range extender.
Supported Features
  • Audio
  • Local Unit Supporting Two Remote Users
  • RS232

Talk to a live agent

  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant PS/2 KVM Extender via CAT5: Extend to 600 Feet (183 meters)
  • CE Compliant PS/2 KVM Extender via CAT5: Extend to 600 Feet (183 meters)
Scroll Down to Get Quote

Overview

The XTENDEX® VGA PS/2 KVM Extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 600 feet using CAT5/5e/6/6a cable.

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Optional external surge protection available.
  • Available with optional stereo audio or RS232 control.
  • Keep-alive keboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
  • Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.

Specifications

Local Unit
  • Host Connection
    • Supports a PC, SUN Fire™ V20z, or NTI Switch.
    • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
    • One male 15-pin HD / two male 6-pin miniDIN connectors for PC or NTI KVM switch.
    • Optional RS232 support - female 9-pin D connector.
    • Optional stereo audio support – 3.5 mm stereo plug.
  • Local Access
    • Crisp and clear 1920x1440 video resolution.
    • One female 15-pin HD / two female 6-pin miniDIN connectors.
    • Compatible with Japanese keyboard layout.
    • Supports PS/2 mice including the IBM ScrollPoint mouse.
    • Optional RS232 support - male 9-pin D connector.
    • Optional stereo audio support - 3.5 mm stereo jack.
Remote Unit
  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
  • One female 15-pin HD connector / two 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Optional 3.5 mm stereo audio connection.
  • Optional male 9-pin D connector for RS232.
Video Quality Adjustment
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Dimensions
  • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Weight: 1.2 lbs (0.54 kg)
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power Consumption: 10 W (each - local and remote unit).

MTBF
NTI Part # MTBF (hrs) NTI Part # MTBF (hrs)
ST-C5KVM-600 (local) 82,592 ST-C5KVM-600 (remote) 80,375
ST-C5KVMA-600 (local) 82,073 ST-C5KVMA-600 (remote) 79,710
ST-C5KVMRS-600 (local) 80,292 ST-C5KVMRS-600 (remote) 79,237
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

ST-C5KVM-600 Distances and Resolutions for CAT5/5e/6/6a Cables
Cable Distance Maximum Resolution
CAT5/5e Solid UTP 600 feet (183 meters) 1024x768 at
60 Hz
400 feet (122 meters) 1280x1024 at
60 Hz
300 feet (91 meters) 1600x1200 at
60 Hz
100 feet (30 meters) 1920x1440 at
60 Hz
CAT5/5e Solid STP, CAT6/6a Solid UTP 300 feet (91 meters) 1024x768 at
60 Hz
200 feet (61 meters) 1280x1024 at
60 Hz
100 feet (30 meters) 1920x1440 at
60 Hz

Application Drawings

  • XTENDEX extends control up to 600 feet (183 meters) from PC or NTI switch with no loss of signal

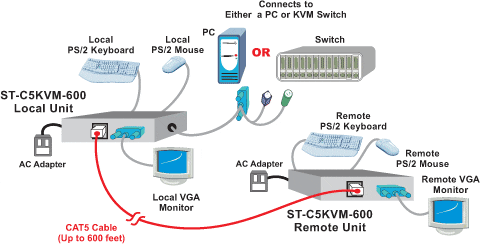

    XTENDEX extends control up to 600 feet (183 meters) from PC or NTI switch with no loss of signal
    How to access a PC or NTI switch up to 600 feet away using CAT5 cable

Application Notes

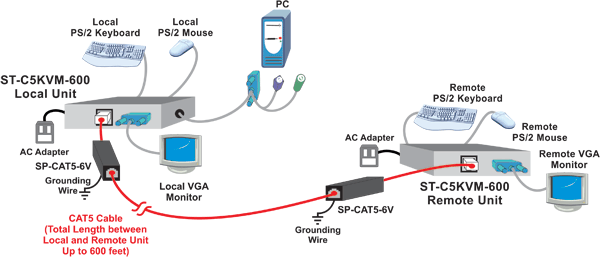

  • Surge Protection for CATx Cable
    Loading image...
    The XTENDEX-SP CATx Surge Protector protects equipment running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty wiring and lightning. Use a protector on each end of the line to provide increased protection on each end against surges.

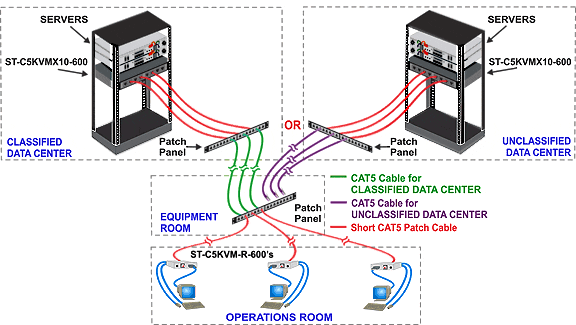

  • Quick Reconfiguration between Secure/Non-Secure Data Centers
    Loading image...
    Quickly repatch CAT5 cables from the patch panel in the Secure Equipment Room to change over between Classified/Unclassified Data Centers. Example application - Change from Secured to Non-Secure data centers quickly from the patch panel

CAD Drawings

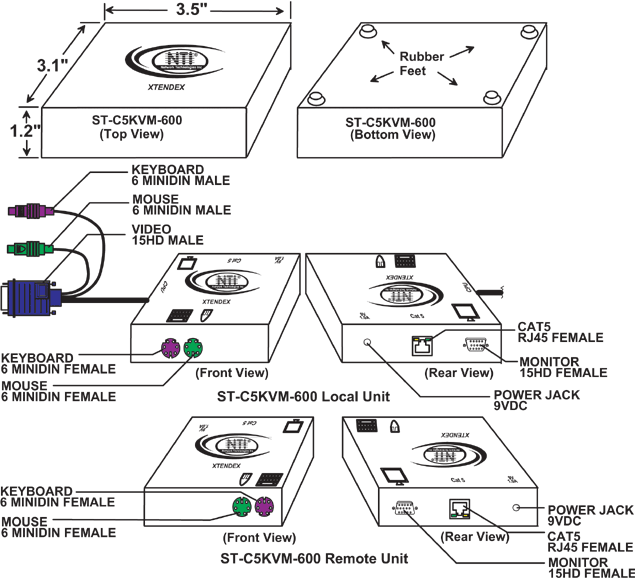

  • ST-C5KVM-600
    Loading image...

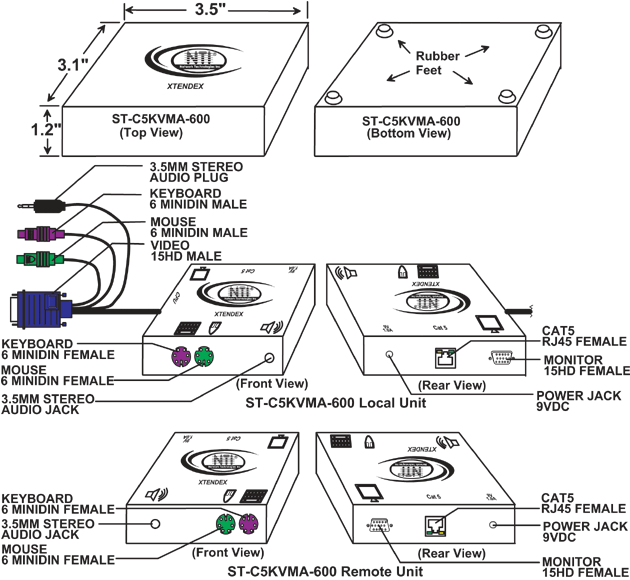

  • ST-C5KVMA-600
    Loading image...

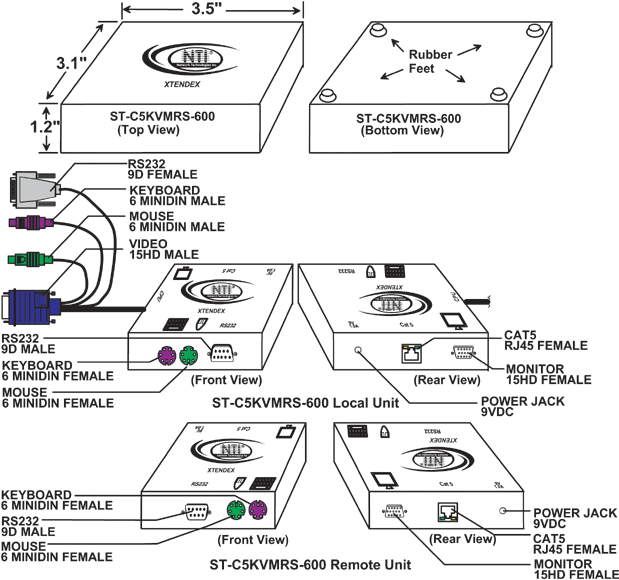

  • ST-C5KVMRS-600
    Loading image...

Optional

Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output.
RS232 Control
  • Supports TXD, RXD, DTR, DSR, CTS and RTS.
  • Baud rate up to 56000.
  • Support for a touch screen monitor.
CATx Surge Protector
  • Protects equipment running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty wiring and lightning.
  • The use of two protectors on each end of the line will provide increased protection for each end against surges.
  • Protected Pins: (1,2) (3,6) (4,5) and (7,8) pass through
  • Impedance: 85 to 115 Ohms
  • Surge Suppression: 22Vpeak @ 100A 2/10µs
  • Dimensions WxDxH: 1x3.6x0.9 in (25x91x23 mm)
VESA Mounting Bracket
  • Use to mount the remote unit to the back of a flat panel monitor.
  • Compliant to VESA 75 and 100 mm (3 and 3.9 in) mounting hole patterns.
  • Dimensions WxH (in): 9.7x4.8
  • Compatible with the remote unit only.

Downloads

Data Sheet:
User Manual:
Installation Guide:
Knowledge Base:

  • "We have been using the NTI KVM extenders for 5 years. The quality of the video has been superior to other brands that we have tried in the past. Along with the reliability of this product, the customer service team is very friendly and helpful. I would highly recommend NTI products for KVM extension."

    Harry Rosen
    Marine Distributors
    Miami, FL

  • "Thanks so much for a great unit! The ST-C5KVM-600 KVM extenders are a perfect solution to allow two workstations to access the same computer. Excellent video quality at 400 feet, we will be purchasing more as needed."

    Steve Hodgkins
    Applied Cybernetic Corp
    Blythewood, SC

  • "The ST-C5KVMRS-600 unit works great with our touch screen displays. We got it right the first time. Thank you for your assistance."

    William Vance
    BETA LaseMike
    Dayton, OH

  • "The thing that most impresses me about NTIs XTENDEX™ ST-C5KVM-600 unit is the video resolution capabilities. Units by other manufacturers in the same price range will only accommodate a 1024x768 resolution. This unit has far greater capabilities for the same price."

    Brett Heintzman
    Performance PC
    Fredonia, NY

  • "We have enjoyed working with the NTI extender products (ST-C5KVMRS-600) for the following reasons:

    1. Your products offer us much more flexibility with the options that are available.

    2. The quality is equal to, if not higher, than the competitive products we have used in the past.

    3. For our projects, which are Mega and Super Yachts on the oceans of this world, you provide us with many of our IT needs, integrated into our complex systems.

    I should also mention my technical questions were handled with courtesy and efficiency, which makes us feel comfortable with NTI."

    Michael Blake
    Palladium Technologies, Inc.
    Fort Lauderdale, FL

  • "Brand 'A' units are a thing of the past. They fail on the MILDEST of power faults, completely collapse in high RF fields, often require multiple re-boots to work at all, and come with a bulky cable set making a rack mount location an absolute nightmare. NTI's ST-C5KVMRS-600, in METAL boxes, tolerate the power company in a size that nicely velcros to the back of a rack computer with short cables. NTI's work beautifully with Cat5 in high RF fields without special shielding. Well done. Don't change a thing, PLEASE!"

    Dick Boekeloo
    DB Broadcast Services
    Brunswick, GA

(0)PS2 KVM Extenders

NTI Part # Supported Features Qty
ST-C5KVM-600 KVM
ST-C5KVMA-600 KVM, Audio
ST-C5KVMRS-600 KVM, RS232

Collapse all Expand all Related Items :

(0)VESA Mounting Kit

NTI Part # Name Qty
ST-C5MK-VESA VESA mounting kit, mount extender to back of monitor, 75 & 100 mm (3 & 3.9 in) mounting patterns

(0)CATx Surge Protector

NTI Part # Description Qty
SP-CAT5-6V CATx Surge Protector
