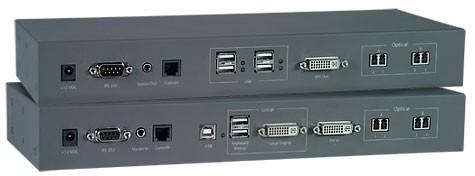

Transparent USB 2.0 Extender with DVI Video, Audio and RS232 via Fiber

The XTENDEX® transparent USB 2.0 Extender with DVI Video, Audio and RS232 via Fiber extends four USB devices, RS232, speakers and a single link digital DVI display up to 6,500 feet via two duplex singlemode LC fiber optic cables.

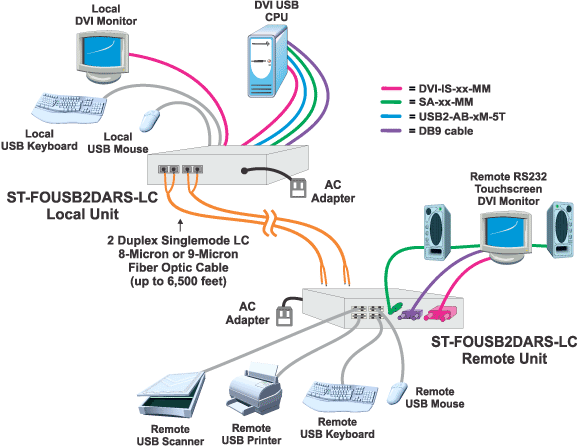

Each DVI USB 2.0 KVM Extender consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to four USB devices, a DVI display, and analog stereo audio speakers.

• Supports fully transparent USB 2.0 connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
• Signal transmission via four-strand singlemode or multimode LC fiber optic cable.
  • Using singlemode cable, extend to 6,500 feet (1,981 meters).
  • Using 50-micron multimode cable, extend to 1,650 feet (503 meters).
  • Using 62.5-micron (OM1) multimode cable, extend to 984 feet (300 meters).

• Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
• Two modes of USB operation – select mode using the switch on the transmitter's front panel.
  • Local mode – computer sees USB devices connected to the transmitter.
  • Remote mode – computer sees USB devices connected to the receiver.
• Cables can be installed in conduit prior to extender installation.
• Extend USB devices such as keyboards, mice, printers, game controllers, flash drives, touch screen monitors, whiteboards, etc.
• Compliant with USB 2.0 (low/full/high speed) standards.
• Low RFI/EMI for sensitive applications.
• Optical link is not susceptible to eavesdropping or electromagnetic interference
• Includes rack mounting kit.
