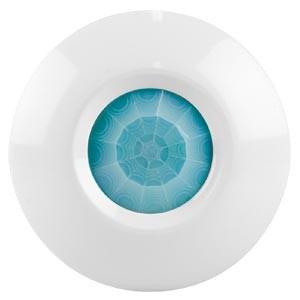

Ceiling Mount Infrared Motion Detector - CE Compliant

Ceiling Mount Infrared Motion Detector. 360° Detection Pattern. Low Noise Dual-element Pyro-electric Sensor.

Talk to a live agent


  • Detects movement across the detection field.
  • 360° detection pattern.
  • 113° conical detection angle from ceiling.
  • Registers movement in area covered: 36 ft (11 m) diameter, 12 ft (3.6 m) from ceiling.
  • Provides substantial immunity to false alarms caused by environmental disturbances.
  • Pulse count or single shot triggering.
  • Good RFI protection
  • Screw terminal
    • To connect to the digital inputs use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
  • Maximum cable length: 1,000 ft (305 m).
  • Includes 12V/1A power supply.
  • Compatible with E-MINI-LXO, E-MICRO, and E-1W.
    • E-1W only: compatible with the E-DI2-1W Digital Input Expander.
  • Regulatory approvals: CE, RoHS
