Low Cost Rackmount USB Keyboard Mouse Drawer

Low Cost Rackmount USB Keyboard Mouse Drawer

NTI Part #: RACKMUX-UKT-LC-Group

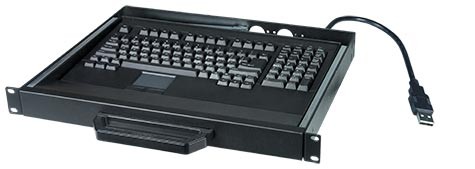

RACKMUX-UKT-LC (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-UKT-LC-Group

The RACKMUX® Low Cost Rackmount USB Keyboard Mouse Drawer combines a USB keyboard and touchpad mouse in a space-saving 1RU industrial strength drawer.

Also known as: rackmount keyboard, rack mount keyboard shelf, rackmount USB keyboard mouse drawers, USB keyboard mouse rack tray.

Available Models

PS/2
USB

Talk to a live agent

Scroll Down to Get Quote

Overview

The RACKMUX® Low Cost Rackmount USB Keyboard Mouse Drawer combines a USB keyboard and touchpad mouse in a space-saving 1RU industrial strength drawer.

Designed to fit in a standard 19" rack/cabinet.
Keyboard extends 14.63" from front of rack.
Anti-rust chassis.
Rugged steel construction with durable powder coat finish.

Specifications

USB Keyboard Drawer

USB keyboard integrated with touchpad.
Compatible with USB PC computers.
Built-in cursor keys and numeric keys.
104-key US layout keyboard.
GlidePoint touchpad.
- Usable surface dimension: 2.25x1.63"
Travel distance: 4.0 ±0.5 mm
Travel to peak: 1.5 ±0.5 mm
Peak force: 50 ±10 gm
Switch life: 10 million life cycles
Electronic data: +5VDC ±5% @ 300mA
Compatible with NTI's VGA USB KVM Switches: UNIMUX-USBV-2, UNIMUX-USBV-4O, UNIMUX-USBV-4HD and UNIMUX-USBV-8HD

Dimensions

WxDxH (in.): 17.32x13x1.75
Keyboard extends 14.63" from front of rack.
- Drawer does not lock into position when pulled out.
Weight: 10.5 lbs (4.76 kg)

Environmental

Operating temperature: 32 to 131°F (0 to 55°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating humidity: 10 to 95% RH.

Cables

Keyboard/mouse proprietary cable.

Warranty

Two years

CAD Drawings

RACKMUX-UKT-LC

Downloads

Data Sheet:

Low Cost Rackmount USB Keyboard Mouse Drawer 117 KB

(0)Rackmount Keyboard Drawers

NTI Part #	Description	Qty
RACKMUX-UKT-LC	Low Cost USB rackmount keyboard drawer
