Rackmount SUN USB KVM Drawer with USB KVM Switch

NTI Part #: RACKMUX-VS17-NT-4USB-Group

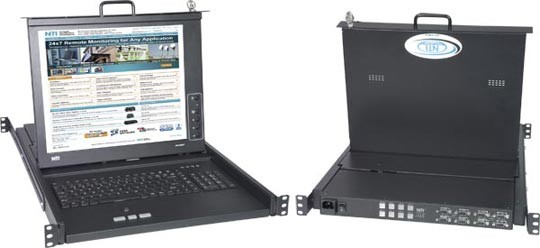

RACKMUX-VS17-NT-8USB (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-VS17-NT-4USB-Group

The RACKMUX® SUN USB KVM Drawer with Integrated USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port USB KVM Switch into a space-saving 1RU industrial strength drawer.

Also known as: integrated SUN USB KVM drawer and USB switch, KVM switch in rackmount 1RU KVM drawer, 1RU rackmount LCD monitor SUN USB KVM switch.

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount SUN USB KVM Drawer with USB KVM Switch
CE Compliant Rackmount SUN USB KVM Drawer with USB KVM Switch

Scroll Down to Get Quote

Overview

Description

Available with forward-folding 17" (432 mm) TFT/LCD VGA monitor.
Crisp and clear 1280x1024 video resolution.
Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
Control up to eight USB computers (PC, SUN, and MAC).
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large padded wrist-rest.
Designed to be a one-person job when installing the drawer.
Torque-friction hinges - monitor does not wobble, spring, or slam shut.
LCD auto-shutoff in closed position.
Drawer locks into place when open to prevent it from sliding out of the rack.
Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.

Specifications

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.
Power consumption: 45 W

Dimensions

WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 39" (991 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Warranty

Two years

Rackmount SUN USB KVM Drawer Specifications

UNIMUX USB KVM Switch Specifications

Application Drawings

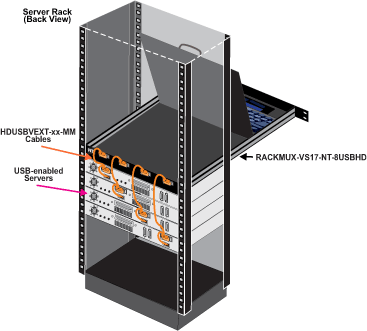

Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

CAD Drawings

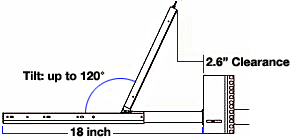

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

Keyboard Layouts

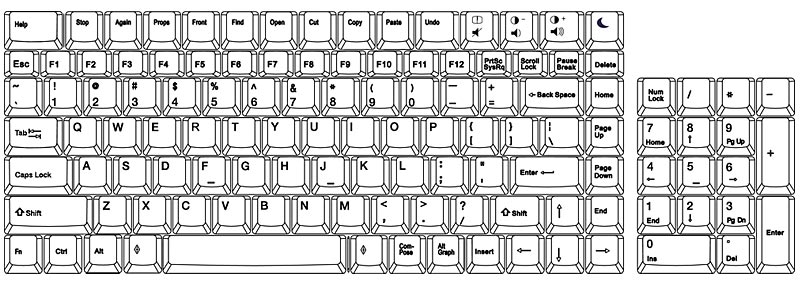

Rackmount SUN USB KVM Drawer with Numeric Keypad

RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)

Downloads

Installation Guide:

RACKMUX-VS17-NT-4/8USB – Installation and Operation Manual 1.6 MB

The RACKMUX-VS17-N-8USB is a good product that helped us save room in our server rack. Installation ran very smooth. Thank you for the quality product and expedited shipping.

Adriana Ruiz

SSA Sistemas Nicaragua SA

Managua, Nicaragua

(0)SUN USB KVM Drawers with USB KVM Switch

NTI Part #	Mouse	Keyboard Features	Number of Ports	Qty
RACKMUX-VS17-NT-4-USB	Trackball	Numeric keypad	4
RACKMUX-VS17-NT-8USB	Trackball	Numeric keypad	8

Collapse all Expand all Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part #	Description	Qty
RL-T15-TEL	Mounting Bracket for Two-Post Style Telco Rack

(0)VGA + USB Interface Cable - Male to Male

NTI Part #	Length	Qty
USBVEXT-6-MM	6 feet
