Low-Cost Composite Video + Audio to HDMI Converter

NTI Part #: CVA-HD-LC-Group

The Low-Cost Composite to HDMI Converter changes your Composite video and audio signals to a single HDMI stream with integrated audio. The converter generates compatible analog to digital conversion signals to make the connection between the Composite video input and the HDMI output work.

Also known as: composite video audio to HDMI converter, RCA to HDMI adapter, connect analog video source to digital monitor

Talk to a live agent

Scroll Down to Get Quote

Overview

Connects video sources with analog RCA video connectors to HDMI monitors or projectors.
Supports 1080p or 720p HDTV output resolutions.
Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Plug and play functionality – no new software or drivers required.

Specifications

Connectors

Three female RCA phono jacks (video, R&L) for Composite video and stereo audio input.
- Supported video formats: PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N.
One female HDMI connector for HDMI output.
One female Mini USB Type A connector for power.
- Can be powered by a USB port on the display monitor or a USB PC.

Dimensions

WxDxH: 2.17x2.60x0.94 in (55x66x24 mm).

Video

Supports HDTV resolutions of 1080p and 720p.
Select resolution using the switch on the unit.

Package Includes

Low-Cost Composite Video + Audio to HDMI Converter
USB Mini Type A to USB Type A cable
Manual

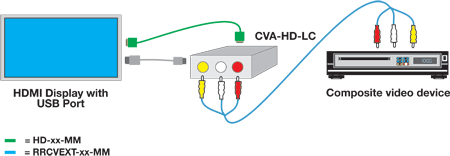

Application Drawings

Low-Cost Composite Video + Audio to HDMI Converter

(0)Low-Cost Composite Video + Audio to HDMI Converter

NTI Part #	Description	Qty
CVA-HD-LC	Composite Video + Audio to HDMI Converter

Collapse all Expand all Related Items :

(0)HDMI Male-Male Cables

NTI Part #	Length	Qty
HD-3-MM	3 feet
HD-6-MM	6 feet
HD-10-MM	10 feet
HD-15-MM	15 feet

(0)Composite Video + Stereo Audio RCA Cables

NTI Part #	Length	Qty
RRCVEXT-3-MM	3 feet
RRCVEXT-6-MM	6 feet
RRCVEXT-10-MM	10 feet
RRCVEXT-15-MM	15 feet
