Rackmount 4K HDMI/DisplayPort USB KVM Drawer

Rackmount 4K HDMI/DisplayPort USB KVM Drawer

NTI Part #: RACKMUX-4K17-N-Group

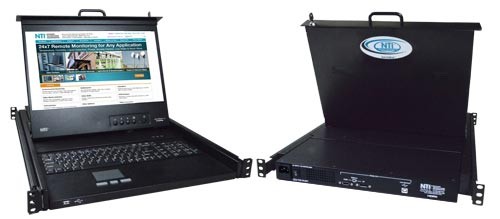

RACKMUX-4K17-N (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-4K17-N-Group

The RACKMUX® 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

Also known as: 4K rackmount kvm drawer, UHD console drawer, rack mount keyboard monitor drawer, HDMI USB KVM drawers, 1RU keyboard DisplayPort LCD shelf.

Ultra-HD 3840x2160@60Hz 4:4:4 17.3" LCD
HDMI 2.0, DisplayPort 1.2a, HDCP 2.2
Single-Person Installation

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount 4K HDMI/DisplayPort USB KVM Drawer
CE Compliant Rackmount 4K HDMI/DisplayPort USB KVM Drawer

Scroll Down to Get Quote

Overview

The RACKMUX® 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

Available with forward-folding 17.3" TFT/LCD monitor.
Compatible with HDMI or DisplayPort USB computers.
- HDMI connector supports resolutions up to 3840x2160@30Hz 4:4:4.
- DisplayPort connector supports resolutions up to 3840x2160@60Hz 4:4:4.
HDMI 1.4, DisplayPort 1.2a, HDCP 2.2/1.4 compliant.
Torque-friction hinges – monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
Three-button touchpad mouse supports single-finger gestures.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rugged steel construction with durable powder coat finish.
LCD auto-shutoff in closed position.
Internal cable arm provides proper cable management for sliding the drawer open and closed.
Equipped with On Screen Display (OSD).
Designed to be a one-person job when installing the drawer.
Front panel security lock.
Front panel USB port to connect an external USB device, such as a flash drive.
- Supports audio pass-through – connect USB speakers or headphones to the front-panel USB port to play the audio.
Available with optional mounting bracket for two-post style telco rack.

Specifications

Host Interface

Compatible with a USB-enabled computer with HDMI or DisplayPort output.
Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
One female HDMI, one female DisplayPort, and one female USB Type B connectors.
Use with an NTI KVM Switch to control multiple USB computers.
Compliant with HDMI 1.4, DisplayPort 1.2a, and HDCP 2.2/1.4 standards.

Monitor

Forward-folding 17.3" Active Matrix LCD flat panel display.
Resolution:
- HDMI: up to 3840x2160@30Hz 4:4:4.
- DisplayPort: up to 3840x2160@60Hz 4:4:4.
Tilt: up to 120°.
Frequency: up to 60Hz
OSD controls for brightness, contrast, phase, Horz- and Vert-center alignment, zoom and color adjustment.
Brightness: 400 nits
Contrast Ratio: 1000:1

Devices

Keyboard available in: English (US).
- 100-key (US) with numeric keypad
Three button touchpad mouse.
- Supports single-finger gestures.
Front panel USB 2.0 port to connect external USB devices.
- Female USB Type A connector.
- KVM drawer must be connected to a USB-enabled computer.

Cables

6-foot (1.8-meter) HDMI male to male cable included.
6-foot (1.8-meter) DisplayPort male to male cable included.
6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
6-foot (1.8-meter) power supply cable included.

Power

100 to 240 VAC at 50 or 60 Hz via IEC connector.
Power Consumption: 30 W

Dimensions

WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
- Handle adds an additional 1.5" to the depth when monitor is in closed position.
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

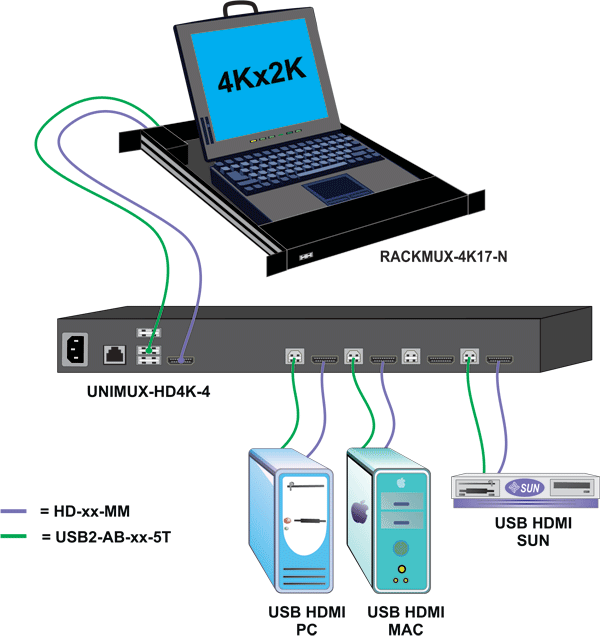

Application Drawings

Rackmount 4K HDMI/DisplayPort USB KVM Drawer

CAD Drawings

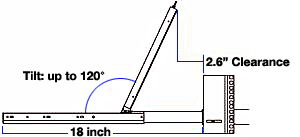

Maximum Tilt Angle Diagram

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
