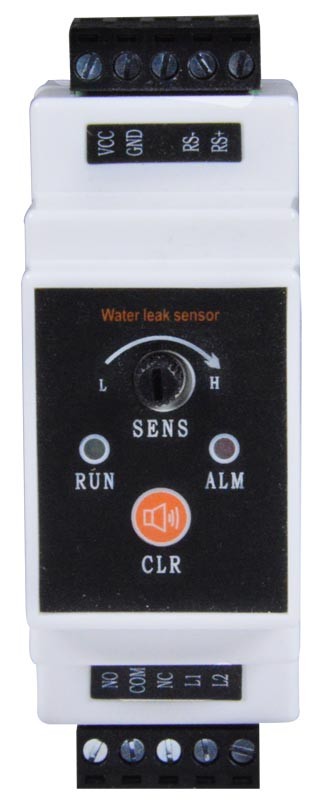

Single-Zone Liquid Detection System

NTI Part #: E-LDA-LC2-Group

The ENVIROMUX® Single-Zone Liquid Detection System monitors up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or an under carpet leak detection sensor. When the sensor detects a water or chemical leak, the system will notify you via a visual indicator (red LED) and an audible alarm.

Talk to a live agent

Designed and Manufactured in the U.S.A.
ROHS Compliant Single-Zone Liquid Detection System
CE Compliant Single-Zone Liquid Detection System

Scroll Down to Get Quote

Overview

Monitor up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or an under carpet leak detection sensor.
Audible and visible alarm notifications.
- Silence the audible alarm using the "mute" button.
Adjustable leak alarm sensitivity thresholds.
Use as a standalone monitoring device or integrate into a larger system via the relay outputs.
Configure for normally open or normally closed circuit connection.
DIN-rail mountable.

Specifications

Dry Contact Closures

One screw terminal pair for connecting a liquid/chemical detection sensor cable or an under carpet leak detection sensor.
- Compatible sensors:
  - E-LD-LCx-y Low-Cost Liquid Detection Sensor Cable
  - E-LDx-y Liquid Detection Sensor Cable
  - E-CDx-y Chemical Detection Sensor Cable
  - E-UCLD-x Under Carpet Leak Detection Sensor
Potential-free.

Output Relay

One screw terminal pair.
Potential-free relay switch contacts.
Normally open / normally closed connection points.
Maximum switching load: 0.5A at 125VAC or 1A at 24VDC.

Serial Interface (Currently NOT Supported)

One screw terminal pair for RS485 two-wire network. (Currently NOT supported.)

Dimensions

WxDxH in: 1.41x4.19x2.44 (36x106x62 mm).

Power

One screw terminal pair.
Provides +12VDC, 100mA
Includes 12V, 1A power supply with country-specific line cord.

Environmental

Operating Temperature: -4 to 122°F (-20 to 50°C).
Storage Temperature: -40 to 140°F (-40 to 60°C).
Operating & Storage Relative Humidity: 5 to 95% non-condensing RH.

Regulatory Approvals

CE, RoHS

Warranty

Two years

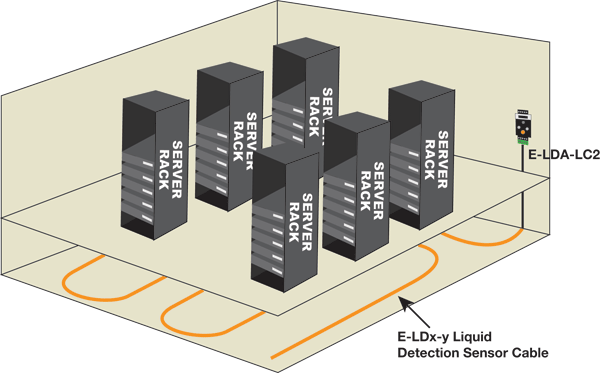

Application Drawings

Single-Zone Liquid Detection System

How to monitor up to 1,640 feet of leak detection sensor cable – receive alert warnings when liquid is detected

Downloads

Data Sheet:

Single-Zone Liquid Detection System 260 KB

User Manual:

E-LDA-LC2 – Installation and Operation Manual 295 KB
