Temperature/Humidity/Dew Point Sensor, -4 to 185°F (-20 to 85°C), DIN Mounted
Temperature/Humidity/Dew Point Sensor, -4 to 185°F (-20 to 85°C), DIN Mounted

Additional Images/Videos

Temperature/Humidity/Dew Point Sensor, -4 to 185°F (-20 to 85°C), DIN Mounted

NTI Part #: E-STHSB-D
Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.

Talk to a live agent

Overview

  • Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±0.90°F (±0.50°C) for -4 to 14°F (-20 to -10°C).
    • ±0.72°F (±0.40°C) for 14 to 185°F (-10 to 85°C).
  • Humidity accuracy:
    • 10 to 80% relative humidity, ±%
    • 80 to 90% relative humidity, ±4%
  • Supports dew point measurement.
  • RJ45 connector.
  • Voltage Supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps

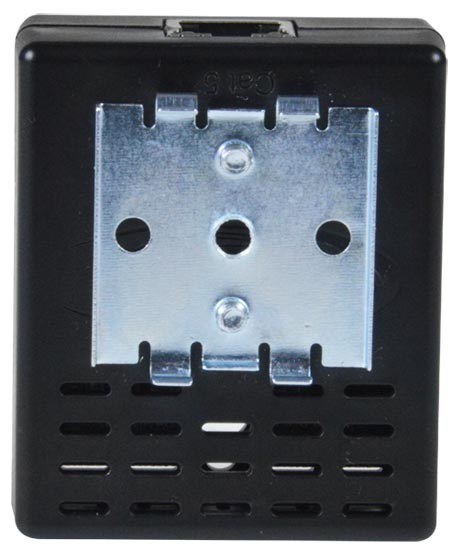

  • DIN mountable
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with E-SEMS-16(U).
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the E unit.
