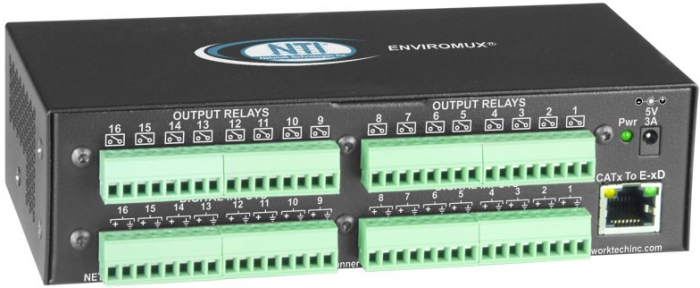

Digital Input/Output Expander (Normally-Open Relay Contact Outputs)

NTI Part #: E-DI16DOR16-V2

E-DI16DOR16-V2 - Digital Input/Output Expander, Desktop

NTI Part #: E-DI16DOR16-V2

Qty:

Adds 16 digital inputs/open-relay contact outputs to E-2D/5D/16D. Accepts 26 - 16AWG wire. Over-voltage surge protected.

Talk to a live agent

ROHS Compliant Digital Input/Output Expander (Normally-Open Relay Contact Outputs)

Adds 16 digital inputs and 16 digital normally-open relay contact outputs to the E-2D/5D/16D
- Interfaces with the E-2D/5D/16D via the RJ45 Sensor Port
Digital inputs:
- 16 screw terminal pairs for connecting dry contact devices
  - One screw terminal pair for tachometer; 0 to 255 Hz
- Accepts 26 to 16AWG wire
- Potential free
- Voltage range: 0 to +36VDC
- Over-voltage surge protected
Digital outputs:
- 16 screw terminal pairs for normally-open relay contact outputs
- Accepts 26 to 16AWG wire
- Potential free
- Rated switching load: 0.5A @ 125VAC, 1A @ ±30VDC, 0.5A @ ±48VDC.
- Galvanic isolation: 1kV
- Fused
Supports CAT5/5e/6 cable up to 500 ft. (152.4 m)
Control via SNMP:
- Requires read-write community configuration.
- Digital inputs are fixed values (not writable) while output relays are writable.
- Locate OIDS using a MIB browser.
Includes 5V/3A power supply.
Current consumption: 75mA @ 5VDC
Compatible with E-2D/5D/16D.

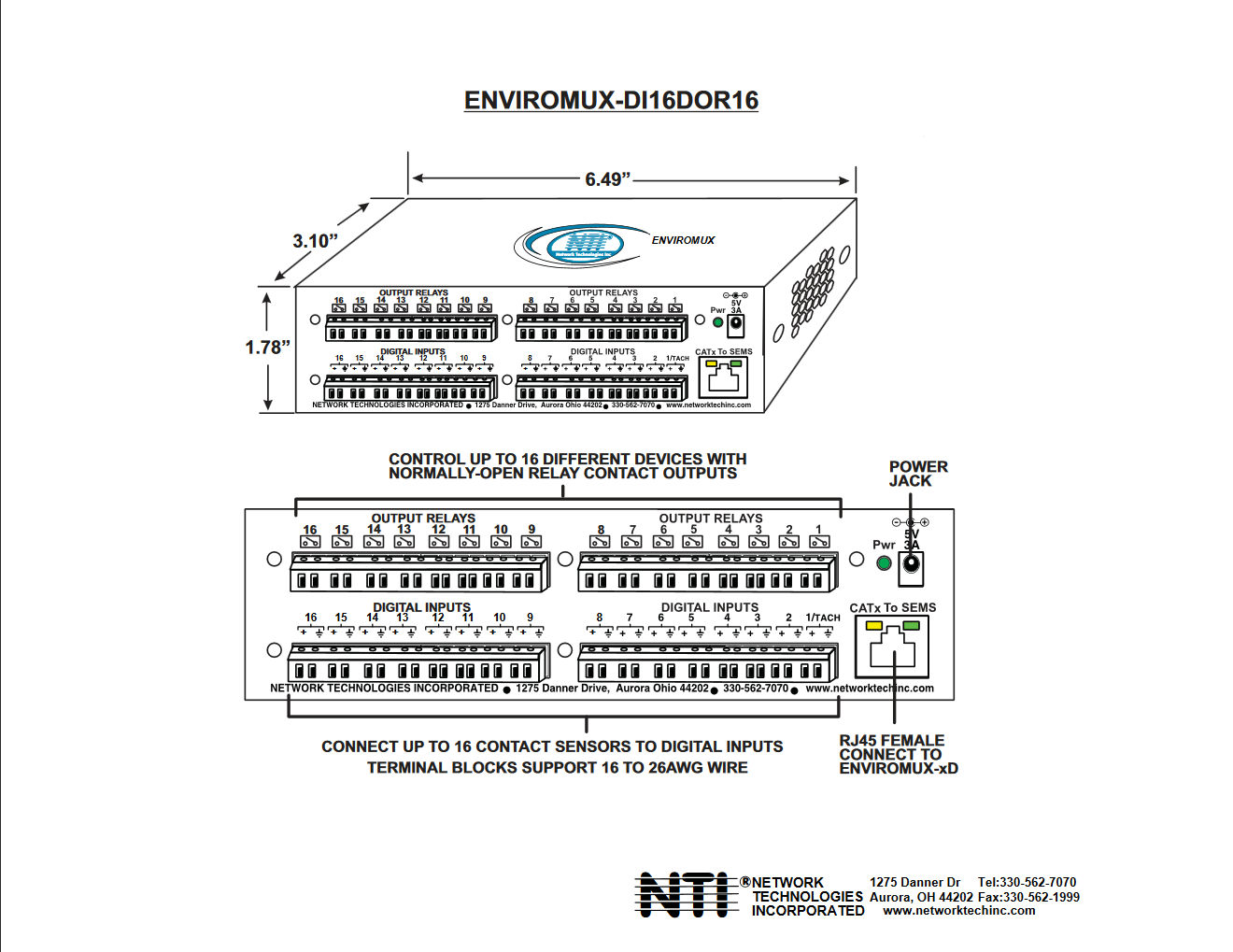

Dimensions WxDxH: 6.49x3.15x1.71 in (165x80x44 mm)
Regulatory approvals: RoHS
MTBF: 650,166 hrs
Operating temperature: 32 to 158°F (0 to 70°C)
Storage temperature: -4 to 176°F (0 to 70°C)
Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
