Extend an Ultra-HD 8K 4320p 60Hz DisplayPort monitor up to 15 meters

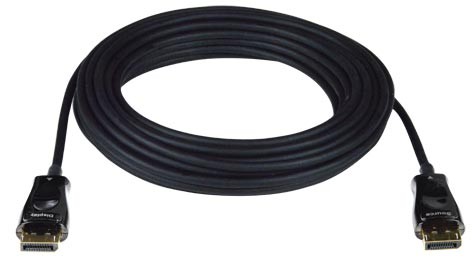

Low-Cost 8K 32.4Gbps DisplayPort 1.4 Active Optical Cable, 15 meters

NTI Part #: DP8K-FO-15M-MMLC
XTENDEX® DP8K-FO-xxM-MMLC
XTENDEX® DP8K-FO-xxM-MMLC
NTI Part #: DP8K-FO-15M-MMLC
The XTENDEX® Low-Cost 8K DisplayPort Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort monitor up to 15 meters from a video source. Using optical fiber, the DP8K-FO-xxM-MMLC provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

Talk to a live agent

  • ROHS Compliant Low-Cost 8K 32.4Gbps DisplayPort 1.4 Active Optical Cable, 15 meters
  • Low-Cost 8K 32.4Gbps DisplayPort 1.4 Active Optical Cable, 15 metersDigital Signage Product

Overview

The XTENDEX® Low-Cost 8K DisplayPort Active Optical Cable locates an Ultra-HD 8K 4320p 60Hz DisplayPort monitor up to 15 meters from a video source. Using optical fiber, the DP8K-FO-xxM-MMLC provides high reliability DisplayPort signal transmission with zero signal loss in high noise environments.

  • High speed and long distance transmission by optical system up to 100 meters (328 feet).
    • Hybrid cable containing both fiber optic and copper cores.
  • Supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
  • No loss of signal – delivering crystal clear digital images instantly.
  • No external power required.
  • DisplayPort features supported:
    • DisplayPort 1.4
    • Up to 16-bit Color and 48-bit Deep Color
    • YCbCr 4:4:4, YCbCr 4:2:2, and RGB
    • LPCM
    • Bandwidth up to 32.4Gbps
  • HDCP 2.2 compliant.
  • Optical fiber immune to signal noise.
  • Low RFI/EMI for sensitive applications.
  • Supports Plug-n-Play specification.
  • EDID learning for the support of any DisplayPort display device.
  • Thin and ultra-lightweight construction.
  • Ideal solution for many applications, including:
    • Digital Signage
    • Medical Imaging Equipment
    • Airplane On-board Video System
    • Home Theater
    • TV Broadcast Station
    • Conference Room Video Equipment
  • These cables are directional. See labeled connector ends.

Specifications

  • Connectors: Male DisplayPort connectors.
    • These cables are directional. See labeled connector ends.
  • Resolutions: supports resolutions up to Ultra-HD 8K (7680x4320) @60Hz, 4Kx2K (4096x2160 and 3840x2160) @120Hz, and HDTV 1080p @240Hz.
  • Supports HDCP 2.2.
  • Video bandwidth: 32.4Gbps
  • Cable Diameter: 5.2mm (0.2 in)
  • Connector Width: 22mm (0.87 in)
  • Bend Radius: up to 20mm (0.78 in)
  • Available lengths: 15 meters
Environmental
  • Operating temperature: -40 to 158°F (-40 to 70°C).
Regulatory Approvals
  • RoHS
Warranty
  • Two years
