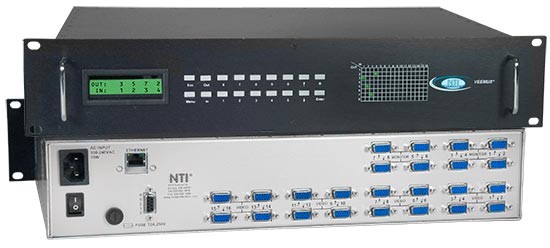

VGA video matrix switch, 16 in 12 out, Ethernet/RS232 control, rackmounted

VGA video matrix switch, 16 in 12 out, Ethernet/RS232 control, rackmounted

NTI Part #: SM-16X12-15V-LCD

VGA video matrix switch, 16 in 12 out, Ethernet/RS232 control, rackmounted

VGA video matrix switch, 16 in 12 out, Ethernet/RS232 control, rackmounted

NTI Part #: SM-16X12-15V-LCD

Qty:

Video Matrix Switch, 16 input and 12 output

Talk to a live agent

Overview

Video Matrix Switch, 16 input and 12 output

Specifications

Video Input

Sixteen female 15-pin HD connectors.
Impedance: 75 Ohms.

Video Output

Twelve female 15-pin HD connectors.
1920x1200 video resolution with no degradation.
Impedance: 75 Ohms.
Bandwidth: 200 Mhz, fully loaded.

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.
Power consumption: 20 W
Add -48V5V10A2, optional internal DC-DC converter to install the SM-16x12-15V-LCD in a Telecom environment.

MTBF

SM-16x12-15V-LCD: 58,909 hrs.

Cables

Interface cables between the computers and the switch are required for proper operation.
Recommended NTI video cables:
- VGA interface cable (VEXT-xx-MM).
- VGA to BNC cable (VINT).
Cables not included.

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS
TAA compliant

Warranty

Two years
