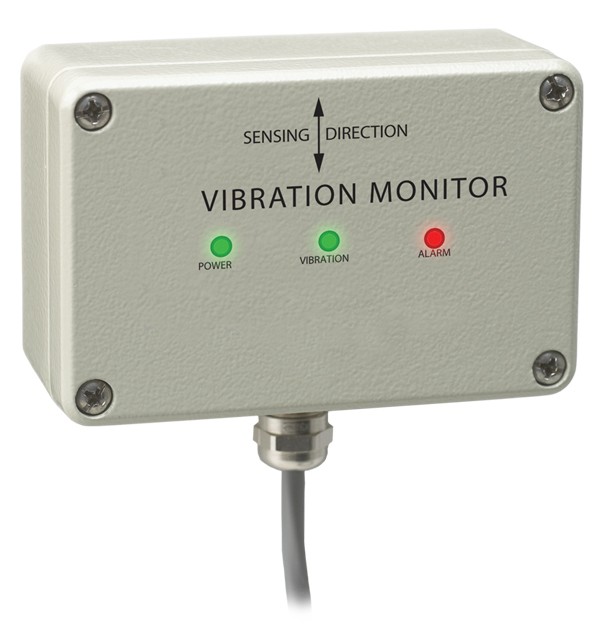

Rugged Vibration Sensor – Detect Over- or Under-Vibration in Machinery

NTI Part #: E-VSSR-10
E-VSSR-10
E-VSSR-10
NTI Part #: E-VSSR-10
For registering over- or under-vibration in machinery such as large motors, gear boxes, turbines, pumps, blowers, crushers, compressors, blenders, hammermils, and conveyors.

Talk to a live agent

Overview

  • For registering over- or under-vibration in machinery such as large motors, gear boxes, turbines, pumps, blowers, crushers, compressors, blenders, hammermils, and conveyors.
  • Adjustable over/under alarm sensitivity: 0.1 to 2.2 in/s (2.5 to 55 mm/s) rms.
  • Minimum vibration frequency (-3db): 10 Hz.
  • Maximum vibration acceleration: ±1.76 oz (±50 g) peak.
  • Isolated NPN output is fail-safe.
  • Screw terminal.
    • 10 ft attached cable.
  • Cast aluminum enclosure is rated NEMA 4X.
  • Includes 24V, 130mA power supply.
    • DIN rail mountable.
  • Operating temperature: -40 to 185°F (-40 to 85°C).
  • Dimensions WxDxH (in): 3.94x2.56x1.66 (100x65x42 mm).
  • Regulatory approvals: UL.
