Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)

NTI Part #: ST-C64K-HDBT-L8-R

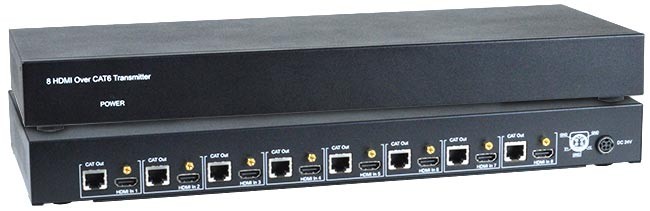

ST-C6HD-HDBT-L8-R (Front & Back)
ST-C6HD-HDBT-L8-R (Front & Back)
NTI Part #: ST-C64K-HDBT-L8-R
Extend video and multi-channel audio from 8 HDMI video sources up to 328 feet away - supports 4K, 2K, 1080p, and 1920x1200 resolutions.

Talk to a live agent


The XTENDEX® Multiple HDMI Extender Over HDBase-T with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable using HDBase-T technology. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 2096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
    • With CAT6/6a/7 (23 AWG): 328 feet.
    • With CAT5e (24 AWG): 250 feet.
  • Each input is directly connected to a corresponding output – point-to-point extension.
    • Input 1 is connected to output 1, input 2 is connected to output 2, etc.
  • HDCP compliant.
  • Supports Power over Ethernet (PoE) – power supply not required at the remote unit.
  • HDMI features supported:
    • 4K x 2K - 3840x2160 and 4096x2160 resolutions
    • 24/36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
    • 3D
    • Bandwidth up to 300 MHz (10.2 Gbps)
    • Support for CEC (consumer electronic control) compatible devices
    • Lip Sync
  • No loss of audio or video quality between the transmitter and remote units.
  • Reads EDID from the connected display.
  • Compact 1RU design.
    • Rack mount kit included.
