High-Accuracy Platinum RTD Transmitter, -328°F to 1562°F

NTI Part #: E-RTDT-1562
Server Environment Monitoring System RTD Sensors
RTD Temperature Sensors & Transmitters compatible with ENVIROMUX® E-2D, E-5D and E-16D
RTD Transmitters

Talk to a live agent


  • Use to connect 100O platinum RTD temperature sensors to the E-2D/5D/16D.
  • Temperature range: -328 to 1562°F (-200 to 850°C)
    • When used with the E-2D/5D/16D, the supported range is -89 to 738°F (-67 to 392°C. Call an NTI product consultant to have the range expanded on the ENVIROMUX system.
  • Accurate to within ±0.2°F (±0.1°C)
    • If the connected RTD sensor does not support this high of accuracy, the system will revert to the accuracy of the sensor.
  • Configuration: 2, 3, or 4-wire connection
  • Signal Output: 4-20 mA
  • Interfaces with the E-2D/5D/16D via the RJ45 sensor port
    • Includes 7 ft pre-wired RJ45 cable with attached coupler to extend the transmitter up to 1000 feet (328 m) using CATx cable.
  • Din rail mount housing.
  • Dimensions WxDxH: 5.08x4.09x0.89 in (129x104x23 mm)
  • Includes pre-stripped country-specific line cord with tinned strands.
  • Operating temperature: 32 to 131°F (0 to 55°C).
  • Storage temperature: -40 to 185°F (-40 to 85°C).

Application Notes

  • Connect the E-RTDT-1562 Transmitter and RTD sensor to the E-2D/5D/16D

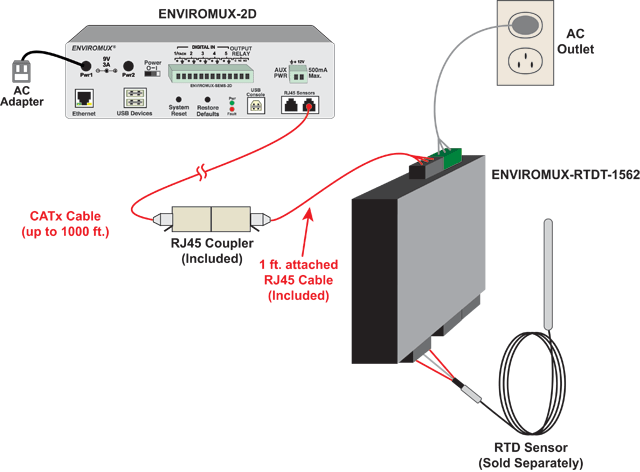

    Connect the E-RTDT-1562 Transmitter and RTD sensor to the E-2D/5D/16D
    The E-RTDT-1562 comes with an attached 7 ft pre-wired RJ45 cable which can either be directly attached to the ENVIROMUX unit, or extended up to 1000 ft away using the included RJ45 coupler.
