Low-Cost HDMI Splitter/Extender via CAT5e/6: 4-Port

The VOPEX® Low-Cost HDMI Splitter/Extender simultaneously distributes 1080p HDMI video and multi-channel audio from one video source to up to four displays and speakers, each located up to 131 feet away via CATx cable.

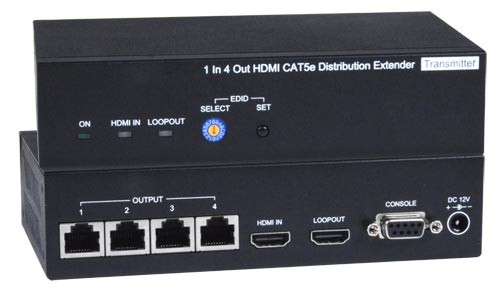

The VOPEX-C5HD-4LC system consists of an HDMI broadcast unit, which connects to the HDMI source and also supplies video to a local display; and four included receivers for each remote HDMI display. The units are interconnected by CAT5e/6/6a/7 cable.

• Transmits an HDMI signal over CAT5e/6/6a/7 cable to multiple display locations.
  • Extend 1080p/1920x1200 to 131 feet (40 m) and 720p to 230 feet (70 m)
• Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
• HDMI features supported:
  • HDMI 1.4
  • Up to 36-bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • LPCM, AC3, DTS, Dolby TrueHD, DTS-HD
  • Bandwidth up to 8.13 Gbps
  • Support for CEC (consumer electronic control) compatible device that is connected to the transmitter.
    • Receivers do not support CEC.
• HDCP 1.4 compliant.
• Supports the DDC2B protocol.
• Built-in default EDID table.
• Includes four receivers.
  • Compact design – allows for direct connection to remote display.
  • No power supply required.
• Cascade two units together to send video simultaneously to 8 receivers.
• Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.
