DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet

NTI Part #: FIBER-1X4-SMSC

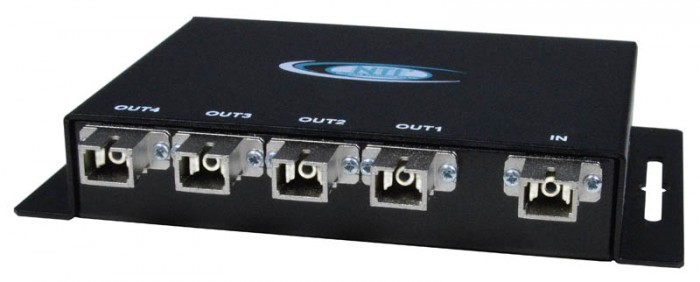

FIBER-1X4-SMSC Optical Splitter
FIBER-1X4-SMSC Optical Splitter
NTI Part #: FIBER-1X4-SMSC
Drive up to 4 remote displays from one DVI video source

Talk to a live agent

Overview

The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution DVI video to up to four displays up to 3,280 feet (1,000 meters) from a DVI computer using single-strand SC multimode fiber optic cable.


The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by a simplex 50-micron multimode SC fiber optic cable.

  • Broadcast real-time DVI video to multiple display locations.
  • Supports crisp and clear resolutions to 1920x1200.
  • Signal transmission via single-strand 50-micron multimode SC fiber optic cable – no RF interference.
  • Compact design of transmitter and receivers allows for direct connection to source/displays.
  • Cables can be installed in conduit prior to transmitter/receiver installation.
  • EDID learning for the support of any DVI display device.
  • Complies with DVI 1.0 standard.
  • No power supply required for the optical splitter or transmitter.
  • Integrated mounting brackets on the optical splitter for easy surface/wall mounting.
  • Ideal solution for digital signage applications.
