E-IMD-CM
E-IMD-CM

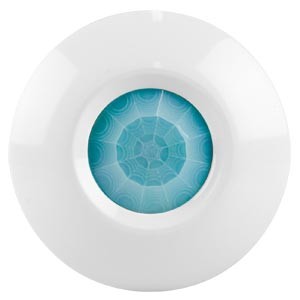

Ceiling Mount Infrared Motion Sensor

NTI Part #: E-IMD-CM
360° Detection Pattern. 113° Conical Detection. Operation Voltage: 8 V-16 V DC. Low Noise Dual-element Pyro-electric Sensor. Pulse Count or Single Shot triggering.

Talk to a live agent

Overview

  • Detects movement across the detection field.
  • 360° detection pattern.
  • 113° conical detection angle from ceiling.
  • Registers movement in area covered: 36 ft (11 m) diameter, 12 ft (3.6 m) from ceiling.
  • Provides substantial immunity to false alarms caused by environmental disturbances.
  • Pulse count or single shot triggering.
  • Good RFI protection
  • Screw terminal
    • To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
  • Maximum cable length: 1,000 ft (305 m)
  • Current consumption: 15mA @ 12VDC.
  • Powered by E-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
