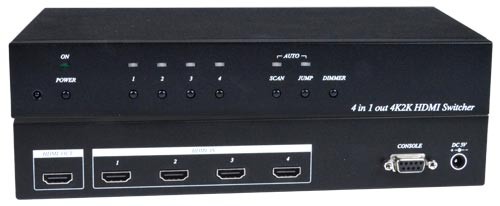

4K 18Gbps HDMI Switch with IR & RS232 Control, 4-Port

The VIDMUX® 4K 18Gbps HDMI Switch routes digital Ultra-HD 4Kx2K 60Hz 4:4:4 video and audio from up to four HDMI sources to one HDMI display.

• Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 and 4096x2160 @24/30/60Hz YUV 4:4:4).
• Eliminates redundant video displays.
• Control the switch via the front panel interface, infrared remote (IR) control or RS232.
• HDMI features supported:
  • HDMI 2.0
  • Up to 48-Bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • LPCM, Dolby, DTS
  • Bandwidth up to 600 Mhz (18Gbps).
  • Support for CEC (consumer electronic control) compatible devices.
  • HDR support.
  • 3D
• HDCP 2.2 and 1.4 compliant.
• Features Auto Scan and Auto Jump switching functions.
  • Auto scan – when the selected video input is inactive for over 0.5 seconds, the switch will automatically display the video from the next active input.
    • When using the previous/next buttons/commands with the IR remote control or RS232, the switch will skip over the inactive inputs.
  • Auto jump – automatically switches to the video signal of a newly connected video input.
